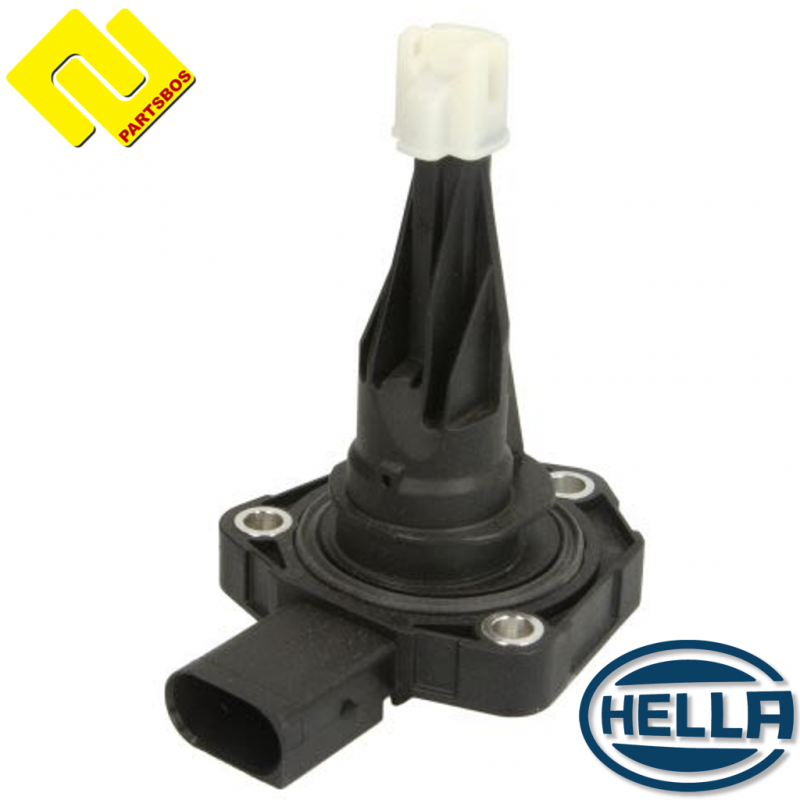

HELLA 6PR013680-191OIL LEVEL SENSOR for ALFA ROMEO ,CHRYSLER ,FIAT, -PARTSBOS-
  • HELLA 6PR013680-191OIL LEVEL SENSOR for ALFA ROMEO ,CHRYSLER ,FIAT, -PARTSBOS-
  • HELLA 6PR013680-191OIL LEVEL SENSOR for ALFA ROMEO ,CHRYSLER ,FIAT, -PARTSBOS-

HELLA 6PR013680-191

(0)Review
€ 69.50
Tax included

OIL LEVEL SENSOR

55268369 ,K68283388AA ,68283388AA ,

for ALFA ROMEO ,CHRYSLER ,FIAT,

Original HELLA Product

5 items

Volume discounts

QuantityPriceYou Save
3€ 69.50Up to € 10.43
Quantity
Add to wishlist
AVAILABLE
  • Fits for Vehicles: ALFA ROMEO ,CHRYSLER ,FIAT,
  • Number of Connectors: 3


Security policy



Delivery policy



Return policy

HELLA 6PR013680-191

Engine Oil Level Sensor (Oil Level Sender)

Technical Data

Sensor Type: Engine Oil Level Sensor
Number of pins: 3 terminal
Number of mounting bores: 3
Fitting Depth: 88.3 mm
Height: 102 mm
Included Components: With gasket/seal
Component Number: N/A (Not specified)
Manufacturer: HELLA

Product Information

Engine Oil Level Sensor is an essential safety component designed to continuously monitor the oil capacity within the engine's oil pan. It provides real-time data to the Engine Control Unit (ECU) or dashboard display, alerting the driver to critically low oil levels before catastrophic engine damage or bearing failure occurs. This premium HELLA sensor ensures high accuracy and durability under extreme thermal conditions. Designed as a direct OE replacement for specific Alfa Romeo, Fiat, Lancia, and Chrysler models .

  • ✔ Premium HELLA original equipment quality ensures reliable fluid measurement.
  • ✔ Supplied with a new gasket/seal to guarantee a secure and leak-free installation .
  • ✔ Direct replacement for OE numbers like 55268369 and 68283388AA .
Symptoms of a faulty Oil Level Sensor:
  • "Low Oil Level" warning light persistently illuminated despite adequate oil on the physical dipstick ,
  • Warning light fails to illuminate when the oil level is dangerously low ,
  • Oil leaking externally from the sensor's mounting base on the oil pan ,
  • Check Engine Light with related diagnostic trouble codes (DTCs) regarding oil level circuit malfunction .

Cross Reference

Fully interchangeable with OEM/OE parts:

OE Part Number: ALFA ROMEO 55268369 ,670050023 ,
CHRYSLER 68283388AA ,K68283388AA ,
FIAT 55268369 ,
LANCIA 55268369 ,
Manufacturer Ref: HELLA 6PR013680-191 ,
Alternate OEM Ref: FISPA 82.2247 ,
HOFFER 7532243 ,
VEMO V24-72-0308 ,

⚠ Diagnostic & Installation Tip ⚠

Before replacing this sensor:

  • Assembly/disassembly by qualified personnel required! The engine oil must be completely drained before removing this sensor from the oil pan.
  • Always thoroughly clean the mating surface around the 3 mounting bores on the oil pan. Install the sensor using the provided new gasket to ensure a perfect, leak-free seal.
  • Inspect the 3-pin connector for any signs of oil wicking into the wiring harness, which is a common cause for erratic dashboard readings.

If you need more information, please do not hesitate to contact us:

CONTACT US

Common translations for this part:

Engine Oil Level Sensor / Oil Sender Unit ,
Ölstandssensor / Sensor, Motorölstand ,
Capteur de niveau d'huile / Sonde de niveau d'huile ,
Sensor del nivel de aceite / Sensor, nivel de aceite del motor ,
Olio-mailaren sentsorea ,
Sensor de nivell d'oli ,
Sensore livello olio / Sensore livello olio motore ,
Sensore livellu oliu ,
Braiteoir leibhéal ola d'inneall ,
Mothaiche ìre ola einnsean ,
Synhwyrydd lefel olew injan ,
Sensor do nivel de aceite do motor ,
Sensor do nível de óleo do motor ,
Motorolieniveausensor ,
Motoroliestandsensor ,
Motor oalje nivo sensor ,
Olíustöðuskynjari vélar ,
Senser tal-livell taż-żejt tal-magna ,
Motor Ueleg Niveau Sensor ,
Motoroljenivåsensor ,
Motoroljenivågivare / Oljenivåsensor ,
Moottorin öljymäärän anturi / Öljyntasoanturi ,
Mootori õlitaseme andur ,
Dzinēja eļļas līmeņa sensors ,
Variklio alyvos lygio jutiklis ,
Czujnik poziomu oleju silnikowego / Czujnik poziomu oleju ,
Snímač hladiny motorového oleje ,
Senzor nivoja motornega olja ,
Snímač hladiny motorového oleja ,
Senzor razine motornog ulja ,
Сензор за ниво на моторно масло ,
Senzor nivoa motornog ulja ,
Датчик рівня моторного масла ,
Sensori i nivelit të vajit të motorit ,
Датчик уровня моторного масла ,
Датчык узроўню маторнага масла ,
Сензор нивоа моторног уља ,
Motorolaj szint érzékelő / Olajszint jeladó ,
Αισθητήρας στάθμης λαδιού κινητήρα ,
Շարժիչի յուղի մակարդակի սենսոր ,
Mühərrik yağ səviyyəsi sensoru ,
ძრავის ზეთის დონის სენსორი ,
Қозғалтқыш майы деңгейінің датчигі ,
Motor yağı seviye sensörü ,
Penderia aras minyak enjin ,
Capteur nivo lwil motè ,
Sensor tingkat oli mesin ,
Capteur nivo lwil motè ,
מאָטאָר אָיל ניוואָ סענסאָר ,
חיישן מפלס שמן מנוע ,
مستشعر مستوى زيت المحرك ,
سنسور سطح روغن موتور ,
इंजन ऑयल लेवल सेंसर ,
इंजिन ऑइल लेव्हल सेन्सर ,
เซ็นเซอร์ระดับน้ำมันเครื่อง ,
エンジンオイルレベルセンサー ,
엔진 오일 레벨 센서 ,
引擎機油液位感知器 ,
发动机机油液位传感器 ,
Cảm biến mức dầu động cơ .

Thank you for visiting! Please bookmark us and come again.

PARTSBOS.SHOP
HELLA
P23018-HEL
5 Items

Data sheet

Manufacturer Part Number
6PR013680-191
Reference OE/OEM Number
55268369 ,670050023 ,68283388AA ,K68283388AA ,
Other Part Number
7532243 ,V24-72-0308 ,
Fits for Vehicles
ALFA ROMEO ,CHRYSLER ,FIAT,
Number of Connectors
3
Sensor
Engine Oil Level Sensor
Spare Part Type
Sensor
Customs Code (HS)
90261029
UPIN
6PR 013 680-191

Specific References

THIS ITEM IS SUITABLE FOR VEHICLES :

Car Manufactured KW HP cc3
ALFA ROMEO GIULIA (952_) 2.2 D (952AEM250, 952AEA250) 10.15- 110 150 2143
ALFA ROMEO GIULIA (952_) 2.2 D (952AEM250, 952AEA250) 08.18- 118 160 2143
ALFA ROMEO GIULIA (952_) 2.2 D (952AFA25, 952AFM25, 952ALA25.. 10.15- 132 180 2143
ALFA ROMEO GIULIA (952_) 2.2 D (952AGA250, 952AGM250, 952ASM.. 10.15- 100 136 2143
ALFA ROMEO GIULIA (952_) 2.2 D (952ALA25, 952AFM25, 952APA2) 08.18-10.22 140 190 2143
ALFA ROMEO GIULIA (952_) 2.2 D Q4 (952AFA45M) 04.17- 132 180 2143
ALFA ROMEO GIULIA (952_) 2.2 D Q4 (952AFA45M, 952ANA4) 08.18-10.22 140 190 2143
ALFA ROMEO GIULIA (952_) 2.9 (952AAM24) 11.19- 382 519 2891
ALFA ROMEO GIULIA (952_) 2.9 GTA (952AAM24) 05.20- 397 540 2891
ALFA ROMEO GIULIA (952_) 2.9 Quadrifoglio (952AAM24) 10.15- 375 510 2891
ALFA ROMEO STELVIO (949_) 2.2 D (949.AXC1A) 12.16- 132 180 2143
ALFA ROMEO STELVIO (949_) 2.9 Q4 (949.AXG2A, 949.AXH2A, 949... 11.17- 375 510 2891
ALFA ROMEO STELVIO (949_) 2.9 Q4 (949.AXH2A) 11.19- 382 519 2891

​May fits for other, not listed, Vehicles-Models
