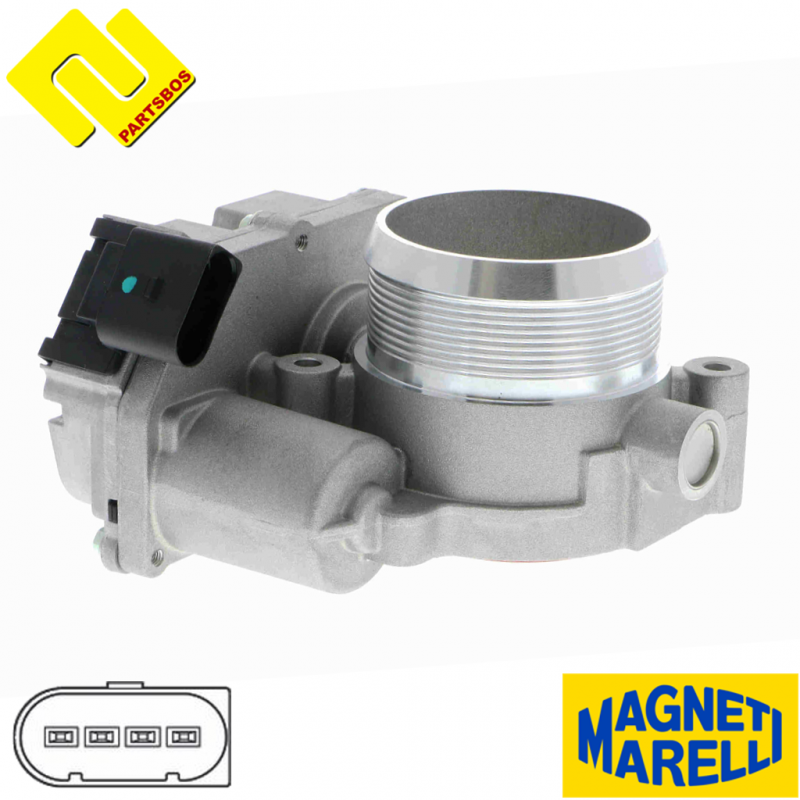

Throttle Body .

Air Flap Actuator ,

Throttle Actuator ,

Control Flap Air Supply .

Parameters:

• Operating Mode: Electric
• Number of pins: 4
• Rated Voltage [V]: 12 V
• Connector Shape: D Shape
• Inlet Ø [mm]: 57 mm
• Supplementary Info: with seal
• Control Unit/Software must be trained/updated

INFO :

Electromotive throttle valve:

In this type of throttle, the throttle valve is mechanically linked to the accelerator pedal. The angle of the valve is monitored by the throttle electronics, which remain in constant communi-cation with the engine management system. The resulting data is compared in real time with a range of information from other onboard sensors. The engine management system calculates the optimum throttle position in terms of both fuel economy and emissions. This information is then fed back to the throttle electronics, which adjust the throttle angle as required.

Electronic throttle valves:

The electronic accelerator’s pulse and all other available data from the engine management system’s sensors are permanently calibrated. The optimum throttle valve position is calculated from this information. The electronic throttle valve is only activated by the control signal from the engine management system.

Air flap actuator:

The electric actuator with integrated position sensor and optional integrated electronics allows intake manifold throttles or turbo charge guide vanes for example to be continuously adjusted. Its more precise control means that it is taking the place of standard pneumatic drives which can no longer satisfy the more stringent requirements.

 Analogous, Fully interchangeable with MAGNETI MARELLI 802000000025  :

OE/OEM:

Audi

4E0145950C ,4E0145950D ,4E0145950F ,4E0145950G ,4E0145950H ,4E0145950J ,

Porsche

95560511520 ,95560511521 ,95560511522 ,

SEAT

4E0145950C ,4E0145950D ,4E0145950F ,4E0145950G ,4E0145950H ,4E0145950J ,

Skoda

4E0 145 950C .4E0 145 950D .4E0 145 950F .4E0 145 950G .4E0 145 950H .4E0 145 950J .

VW

4E0 145 950 C .4E0 145 950 D .4E0 145 950 F .4E0 145 950 G .4E0 145 950 H .4E0 145 950 J .

Alternate p.n:

7.03703.75.0 ,A2C59512933 ,7519066 ,408006 ,117342 ,07.14.193 ,V10-81-0049 ,TB0025 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

The best way to buy this part is to get the number from your existing unit.

You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.

Please make sure your existing part number matches one of the numbers listed above.

If the number/s do not match, then the part will not work with your vehicle.

If you need more information please do not hesitate to contact us .

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

MAGNETI MARELLI 802000000025
