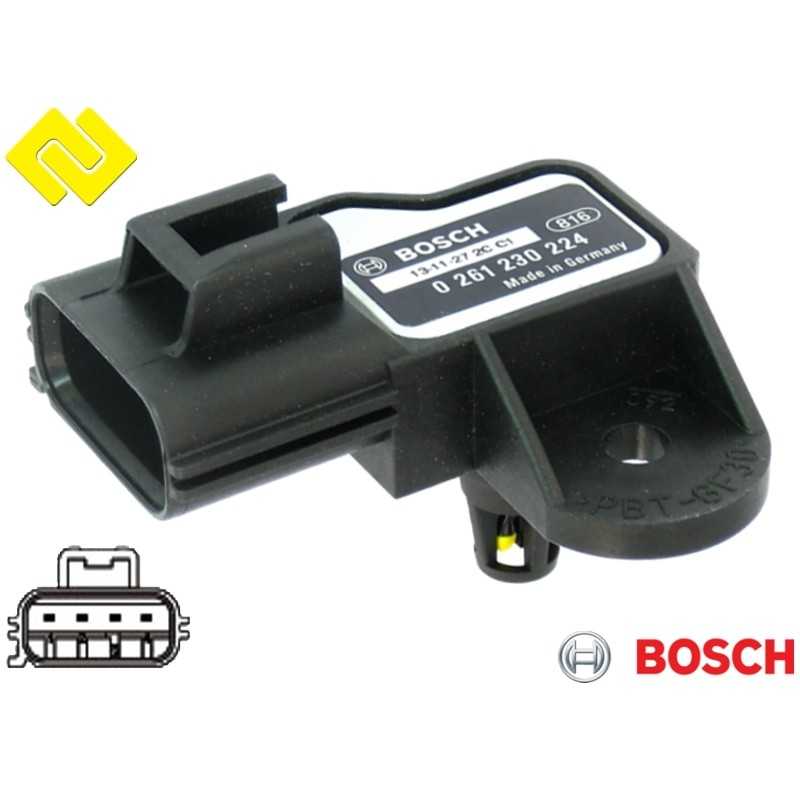

Intake manifold air pressure sensor (MAP),

Boost pressure sensor,

Absolute pressure sensor.

Technical data:

• Pressure range bar: 0.2 - 3.00
• Number of ports: 4
• With integrated air temperature sensor

Info:

Manifold Absolute Pressure Sensors, or MAP Sensors as they are more
commonly known, are used to measure inlet manifold “pressure’ to give an
indication of engine load.
These sensors are generally used in “Speed/Density” or “Manifold Pressure
Controlled” engine management systems that do not use an Air Flow/Mass
Sensor.

Faulty MAP sensor symptoms:
Rough idle.
Surging.
Loss of power and/or fuel economy due to retarded timing and an excessively rich fuel ratio.
Detonation due to too much spark advance and a lean fuel ratio.
A rich fuel condition, which may cause spark plug fouling.

Analogous, Fully compatible with BOSCH 0261230224 :

OE/OEM :

ALFA ROMEO 9660603480

CITROËN 1920LA

FIAT 9660603480 ,

FORD 1372511 ,1503280 ,6C119F479AA ,6C119 F479 AA ,6C119-F479-AA ,

FORD 6C119F479AB ,6C119 F479 AB ,6C119-F479-AB ,M9101473 ,

LANCIA 9660603480 ,

PEUGEOT 1920.LA ,

PARTSBOS P38062 ,P00107 ,

BOSCH 0261230131 ,0 261 230 131 ,0261230132 ,0 261 230 132 ,0261230225 ,0 261 230 225 ,

Alternative p.n :

DELPHI PS10138 ,

EPS 1993205 ,1.993.205 ,1 993 205 ,

ERA 550413 ,

FACET 10.3205 ,

FAE 15098 ,

HOFFER 7472290 ,

HELLA 6PP 009 400-611 ,6PP009400-611 ,

KW 493 205 ,493205 ,

MAGNETI MARELLI 215810004000 ,

NGK EPBBPT4-A011Z ,94601 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

The best way to buy this part is to get the number from your existing unit.

You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.

Please make sure your existing part number matches one of the numbers listed above.

If the number/s do not match, then the part will not work with your vehicle.

If you need more information please do not hesitate to contact us .

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

BOSCH 0 261 230 224 ,0 261 230 131 ,

• BOOST PRESSURE SENSOR, INTAKE MANIFOLD PRESSURE SENSOR ,
• LADEDRUCKSENSOR , SAUGROHRDRUCKSENSOR,
• BOOST TRYKSENSOR, INDSUGNINGSMANIFOLD TRYKSENSOR ,
• BOOST CAPTEUR DE PRESSION, CAPTEUR DE PRESSION ADMISSION DE COLLECTEUR ,
• CAPTEUR, PRESSION DE SURALIMENTATION ,
• SNÍMAČ PLNICÍHO TLAKU, TLAK V SACÍM POTRUBÍ SNÍMAČE ,
• SNÍMAČ PLNIACEHO TLAKU, TLAK V SACOM POTRUBÍ SNÍMAČA ,
• BOOST SENZOR TLAKA, SESALNI KOLEKTOR SENZOR TLAKA ,
• BOOST DRUKSENSOR, INLAATSPRUITSTUK DRUKSENSOR ,
• POTICAJ SENZOR TLAKA, USISNI TLAK SENZOR ,
• TUNNISTIN, IMUSARJAPAINE ,IMUSARJAPAINE TUNNISTIN ,
• UPPÖRVUN ÞRÝSTINGI SKYNJARA, LOFTINNTAK MARGVÍSLEGA ÞRÝSTINGUR SKYNJARA ,
• BOOST SENSORE DI PRESSIONE, SENSORE DI PRESSIONE COLLETTORE DI ASPIRAZIONE ,
• BOOST TRYKKSENSOR, INNTAK MANIFOLD TRYKKSENSOR ,
• SISSELASKEKOLLEKTORI RÕHU ANDUR,
• LADDTRYCKSGIVARE, INLOPPSTRYCK SENSOR,
• ZWIĘKSZ KOLEKTOR CZUJNIK CIŚNIENIA, CZUJNIK CIŚNIENIA DOLOTOWEGO ,
• IMPULSIONAR SENSOR DE PRESSÃO, SENSOR DE PRESSÃO DO COLETOR DE ADMISSÃO ,
• BOOST SENSOR DE PRESIÓN, SENSOR DE PRESIÓN DEL COLECTOR DE ADMISIÓN ,B
• BOOST SENZOR DE PRESIUNE, SENZOR DE PRESIUNE COLECTORUL DE ADMISIE ,
• UPPÖRVUN ÞRÝSTINGUR SKYNJARI, INNTAKA MARGVÍSLEGA ÞRÝSTINGUR SKYNJARI,
• BOOST PAINEANTURI, IMUSARJAN PAINEANTURI ,
• TÖLTŐNYOMÁS ÉRZÉKELŐ, SZÍVÓCSŐ NYOMÁS ÉRZÉKELŐ ,
• BOOST TRYCKGIVARE, INSUGSGRENRÖRETS TRYCKGIVARE ,
• UZLĀDES SPIEDIENA SENSORS,IEPLŪDES KOLEKTORA SPIEDIENA SENSORS,
• ĮPURŠKIMO SLĖGIO DAVIKLIS, SLĖGIS ĮSIURBIMO KOLEKTORIUJE DAVIKLIS,
• ისევე როგორც ზეწოლას სენსორი, შემშვები კოლექტორი წნევის სენსორი ,
• استشعار الضغط، تناول استشعار الضغط المتعددة،
• ΕΝΙΣΧΎΣΤΕ ΑΙΣΘΗΤΉΡΑ ΠΊΕΣΗς, Η ΠΡΌΣΛΗΨΗ ΑΙΣΘΗΤΉΡΑ ΠΊΕΣΗς ΠΟΛΛΑΠΛΉς ,
• חיישן לחץ, חיישן לחץ סעפת יניקה,
• 압력 센서, 흡기 매니 폴드 압력 센서,
• УВЕЛИЧЕТЕ НАЛЯГАНЕТО СЕНЗОР, СЕНЗОР НАЛЯГАНЕ СМУКАТЕЛНА ТРЪБА ,
• ДАТЧИК ТИСКУ НАДДУВУ, ДАТЧИК ТИСК У ВПУСКНОМУ КОЛЕКТОРІ ,
• ДАТЧИК ДАВЛЕНИЯ НАДДУВА, ДАТЧИК ДАВЛЕНИЯ ВО ВПУСКНОМ КОЛЛЕКТОРЕ .
