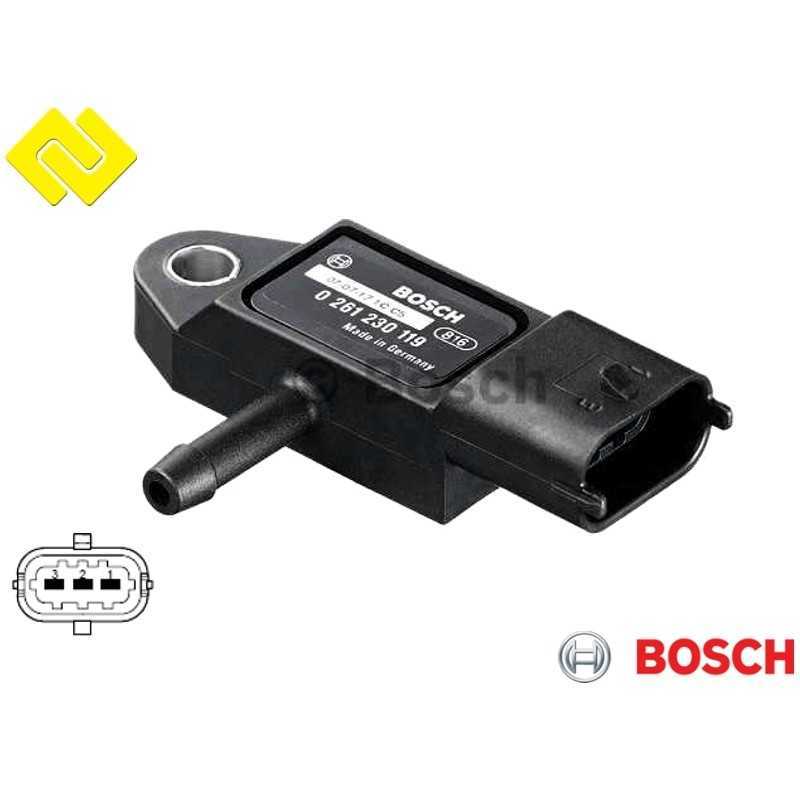

BOSCH 0261230119 Intake Manifold Pressure Sensor MAP
for FORD ,VW ,
-PARTSBOS-
  • BOSCH 0261230119 Intake Manifold Pressure Sensor MAP
for FORD ,VW ,
-PARTSBOS-
  • BOSCH 0261230119 Intake Manifold Pressure Sensor MAP
for FORD ,VW ,
-PARTSBOS-

BOSCH 0261230119

(0)Review
€ 43.80
Tax included

Intake Manifold Pressure Sensor MAP

0261230120 ,1338678 ,1352477 ,4M519F479AA ,4M5Q-9S428-AA ,

for FORD ,VW ,

Original BOSCH Product

55 items

Volume discounts

QuantityPriceYou Save
3€ 43.80Up to € 6.57
Quantity
AVAILABLE
  • Superseded Part Number: 0261230120
  • Number of Connectors: 3


Security policy



Delivery policy



Return policy

BOSCH 0261230119

Intake Manifold Pressure Sensor (MAP Sensor)

Technical Data

Sensor Type: Intake Manifold Pressure Sensor / MAP Sensor
Pressure Range: 20 kPa - 300 kPa
Number of pins: 3 terminal
Utility / Component Number: DS-S2
Manufacturer: BOSCH

Product Information

Intake Manifold Pressure Sensor, commonly known as a MAP (Manifold Absolute Pressure) sensor, is a critical component of the engine's electronic control system. It continuously measures the absolute pressure within the intake manifold (operating accurately within a broad range of 20 kPa to 300 kPa) and converts it into a voltage signal for the Engine Control Unit (ECU) . The ECU uses this precise data to calculate air density and determine the engine's air mass flow rate, thereby adjusting fuel injection and ignition timing for optimal combustion. This genuine BOSCH 3-terminal sensor guarantees factory-level reliability and acts as a direct OE replacement for several Ford models .

  • ✔ High-quality BOSCH engineering ensures rapid response times and superior resistance to under-hood temperatures and vibrations.
  • ✔ Accurately controls the air-fuel mixture, restoring engine power, smooth idling, and optimal fuel economy.
  • ✔ Direct replacement for original Ford part numbers including 1338678 and 1352477 .
Symptoms of a faulty MAP Sensor:
  • Rough, surging, or unstable engine idle.
  • Noticeable lack of power, engine hesitation, or stalling during acceleration.
  • Check Engine Light (CEL) illuminated, often triggering OBD-II codes (e.g., P0106, P0107, P0108).
  • Poor fuel economy and strong smell of unburnt fuel due to the engine running overly rich.

Cross Reference

Fully interchangeable with OEM/OE parts:

OE Part Number: FORD 1338678 ,1352477 ,4M5Q-9S428-AA ,4M5Q9S428AA ,4M519-F479-AA ,4M519F479AA ,
Manufacturer Ref: BOSCH 0 261 230 119 ,0261230120 ,0 261 230 120 ,DS-S2 ,
Alternate OEM Ref: DELPHI PS20177-12B1 ,PS20177 ,
ERA 550412 ,
FACET 10.3144 ,
FAE 15128 ,
FEBI BILSTEIN 105990 ,
HOFFER 7472304 ,7472304E ,
MAGNETI MARELLI 215810009800 ,APS78 ,
MEYLE 7148120010 ,MEX0928 ,
NRF 70830578 ,
NTK 95679 ,EPBBPN3-V021Z ,
VALEO 367590 ,
VEMO V25-72-0091 ,

⚠ Diagnostic & Installation Tip ⚠

Before replacing the MAP sensor:

  • Check the vacuum hoses connecting to the intake manifold. A cracked, leaking, or disconnected vacuum line will cause the sensor to send incorrect pressure readings to the ECU, mimicking a failed sensor.
  • Inspect the 3-terminal electrical connector and wiring harness for corrosion, loose connections, or damage .
  • Ensure the mounting surface on the intake manifold is perfectly clean and the O-ring seals correctly upon installation to prevent vacuum leaks.

If you need more information, please do not hesitate to contact us:

CONTACT US

Common translations for this part:

Intake Manifold Pressure Sensor / MAP Sensor ,
Saugrohrdrucksensor / Ladedrucksensor ,
Capteur de pression du tuyau d'admission / Capteur MAP ,
Sensor de presión del colector de admisión / Sensor MAP ,
Sarrera-kolektoreko presio-sentsorea ,
Sensor de pressió del col·lector d'admissió ,
Sensore di pressione collettore d'aspirazione / Sensore MAP ,
Sensore di pressione di u collettore d'admissione ,
Braiteoir brú iomadúil ionghabhála ,
Mothaiche cuideam iomadachd in-ghabhail ,
Synhwyrydd gwasgedd maniffold derbyn ,
Sensor de presión do colector de admisión ,
Sensor de pressão do coletor de admissão / Sensor MAP ,
Inlaatspruitstukdruksensor / MAP-sensor ,
Indsugningsmanifoldtryksensor ,
Intake manifold druk sensor ,
Inntaksgrein þrýstiskynjari ,
Sensor tal-pressjoni tal-manifold tad-dħul ,
Intake manifold Drock Sensor ,
Innsugningsmanifoldtrykksensor ,
Insugningsrörstrycksensor / MAP-sensor ,
Imusarjan paineanturi / MAP-anturi ,
Sisselaskekollektori rõhuandur / MAP-andur ,
Ieplūdes kolektora spiediena sensors / MAP sensors ,
Įsiurbimo kolektoriaus slėgio jutiklis / MAP jutiklis ,
Czujnik ciśnienia w kolektorze ssącym / Czujnik MAP ,
Snímač tlaku v sacím potrubí / Snímač MAP ,
Senzor tlaka v sesalnem kolektorju ,
Snímač tlaku v sacom potrubí / MAP senzor ,
Senzor tlaka u usisnoj grani / MAP senzor ,
Сензор за притисок на доводниот колектор ,
Senzor pritiska u usisnoj grani ,
Датчик тиску у впускному колекторі / Датчик MAP ,
Sensori i presionit të manifoldit të marrjes ,
Датчик давления во впускном коллекторе / Датчик MAP ,
Датчык ціску ва ўпускным калектары ,
Сензор притиска у усисној грани ,
Szívócső nyomásérzékelő / MAP szenzor ,
Αισθητήρας πίεσης πολλαπλής εισαγωγής / Αισθητήρας MAP ,
Ընդունման բազմակի ճնշման սենսոր ,
Qəbul manifoldunun təzyiq sensoru ,
მიმღები მანიფოლდის წნევის სენსორი ,
Қабылдау коллекторының қысым датчигі ,
Emme manifoldu basınç sensörü / MAP sensörü ,
Penderia tekanan pancarongga pengambilan ,
Capteur presyon manifoul admisyon ,
Sensor tekanan manifold masuk / Sensor MAP ,
Capteur presyon manifoul admisyon ,
ינטייק מאַניפאָולד דרוק סענסער ,
חיישן לחץ סעפת יניקה / חיישן MAP ,
حساس ضغط مجمع السحب / حساس الماب ,
سنسور فشار منیفولد هوا / سنسور مپ ,
इंटेक मैनिफोल्ड प्रेशर सेंसर / एमएपी सेंसर ,
इनटेक मॅनिफोल्ड प्रेशर सेन्सर ,
เซ็นเซอร์แรงดันในท่อร่วมไอดี / MAP เซ็นเซอร์ ,
インテークマニホールドプレッシャーセンサー / MAPセンサー ,
흡기 매니폴드 압력 센서 / MAP 센서 ,
進氣歧管壓力感知器 / MAP感知器 ,
进气歧管压力传感器 / MAP传感器 ,
進氣歧管壓力感知器 ,
Cảm biến áp suất đường ống nạp / Cảm biến MAP .

Thank you for visiting! Please bookmark us and come again.

PARTSBOS.SHOP
BOSCH
P00234-BOS
55 Items

Data sheet

Manufacturer Part Number
0261230119
Reference OE/OEM Number
4M5Q-9S428-AA ,4M51-9F479-AA ,1338678 ,1352477
Superseded Part Number
0261230120
Other Part Number
15128 ,10.3144 ,105990 ,7472304 ,SEB1551 ,
Number of Connectors
3
Sensor
Pressure Sensor
Type
MAP Sensor
Spare Part Type
Sensor
Brand
BOSCH
Country/Region of Manufacture
Germany
Customs Code (HS)
90262080
UPIN
0 261 230 119

Specific References

THIS ITEM IS SUITABLE FOR VEHICLES :

Car Manufactured KW HP cc3
FORD C-MAX (DM2) 1.8 TDCi 02.07-09.10 85 115 1753
FORD FOCUS C-MAX (DM2) 1.8 TDCi 01.05-03.07 85 115 1753
FORD FOCUS II (DA_, HCP, DP) 1.8 TDCi 01.05-09.12 85 115 1753
FORD FOCUS II Saloon (DB_, FCH, DH) 1.8 TDCi 04.05-09.12 85 115 1753
FORD FOCUS II Turnier (DA_, FFS, DS) 1.8 TDCi 07.04-09.12 85 115 1753
FORD MONDEO IV (BA7) 1.8 TDCi 06.07-01.15 92 125 1753
FORD MONDEO IV (BA7) 1.8 TDCi 03.07-01.15 74 100 1753
FORD MONDEO IV Saloon (BA7) 1.8 TDCi 06.07-01.15 92 125 1753
FORD MONDEO IV Saloon (BA7) 1.8 TDCi 03.07-01.15 74 100 1753
FORD MONDEO IV Turnier (BA7) 1.8 TDCi 03.07-12.12 74 100 1753
FORD MONDEO IV Turnier (BA7) 1.8 TDCi 06.07-12.12 92 125 1753
FORD S-MAX (WA6) 1.8 TDCi 01.07-12.10 74 100 1753
FORD S-MAX (WA6) 1.8 TDCi 05.06-12.14 92 125 1753
FORD TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi 06.02-12.13 66 90 1753
FORD TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi 08.06-12.13 81 110 1753

​May fits for other, not listed, Vehicles-Models
