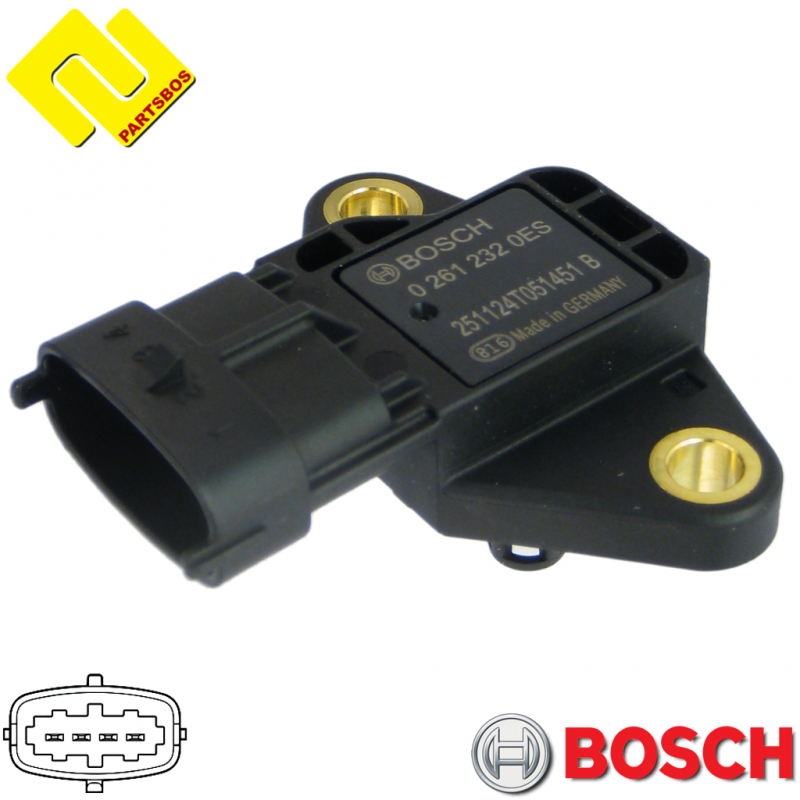

Technical data:

• Pressure range (bar): 0.50 - 4.0 bar (50 - 400 kpa) ,
• Voltage limitation (mV): 500-4500 ,
• Number of ports: 4 ,
• Integrated air temperature sensor: Yes
• Utility no.: DS-S3-TF

Info:

Manifold Absolute Pressure Sensors, or MAP Sensors as they are more commonly known, are used to measure inlet manifold “pressure’ to give an

indication of engine load.

These sensors are generally used in “Speed/Density” or “Manifold Pressure

Controlled” engine management systems that do not use an Air Flow/Mass

Sensor.

Sensors have either over three or four poles:

1. Mass
2. Output signal, 0 to 4.5 Volt
3. Supply voltage, mostly 5.0 Volt
4. Optional: Temperature measurement (NTC)

Faulty MAP sensor symptoms:

• Rough idle.
• Surging.
• Loss of power and/or fuel economy due to retarded timing and an excessively rich fuel ratio.
• Detonation due to too much spark advance and a lean fuel ratio.
• A rich fuel condition, which may cause spark plug fouling.

Analogous, Fully interchangeable with BOSCH 02612320ES :

OE p.n:

CASE IH

500360579 ,

DAF

1697325 ,

International

62274210216 ,

IVECO

500360579 ,5001858011 ,98496568 ,

KHD

04214999 ,4214999 ,

MAGIRUS-DEUTZ

04214999 ,4214999 ,4199694 ,4199328 ,

MAN

51.27421.0216 ,51274210216 ,

51.27421.0198 ,51274210198 ,

51.27421.0142 ,51274210142 ,

51.27421.0185 ,51274210185 ,

SCANIA

1789364 ,

TEMSA

51274210216 ,

VW

07W130758 ,07W 130 758 ,

BOSCH

0281002655 ,0 281 002 655 ,

0281002257 ,0 281 002 257 ,

0281002233 ,0 281 002 233 ,

0281002227 ,0 281 002 227 ,

F00C3G1303 ,F 00C 3G1 303 ,

Alternate p.n :

PS20162-12B1 ,3.37015 ,7472591 ,093.304 ,79274 ,15277 ,104818 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

• The best way to buy this part is to get the number from your existing unit.
• You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
• Please make sure your existing part number matches one of the numbers listed above.
• If the number/s do not match, then the part will not work with your vehicle.

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

If you need more information please do not hesitate to contact us .
