Fuel Injection Pressure Sensor ,

CR rail pressure sensor .

Technical data:

• Thread: M18x1,5
• 3 terminals

INFO :

Diesel engines, as well as petrol engines, use pressure sensors that measure the fuel pressure in the rail.

With this information, the Electronic Control Unit (ECU) adjusts the opening time of the injectors to deliver to the cylinders the optimal amount of fuel for combustion,

depending on the operating mode of the combustion engine.

The fuel rail pressure sensor must measure the fuel pressure with fairly high accuracy and in a very short time.

The information sent by this sensor is critical and absolutely necessary in the injection process.

In the event of a failure of the fuel rail pressure sensor, the engine will run in failure mode as it will not have information regarding the value of the rail pressure.

In this case, the ECU will control the pressure from the rail to the open loop.

The fuel pressure sensor is a weak link in the fuel system and many complain that they have had problems with it.

It can give up due to high temperatures.

Many are wondering if they need to change the high-pressure rail along with the sensor. The answer is no.

Only the sensor is changed and the repair takes less than 15 minutes.

Analogous, Fully interchangeable with PIERBURG 7.11225.16.0 :

OE/OEM:

AUDI

076906051 ,

SEAT

076906051 ,

SKODA

076906051 ,

VAG

076906051 ,

VW

076 906 051 ,

PARTSBOS

P37102

Alternative p.n:

55PP12-01 ,55PP1201 ,

Can Be Fitted To The Below Fuel Rails :

VOLKSWAGEN

076130093A ,076 130 093A ,076 130 093 A ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

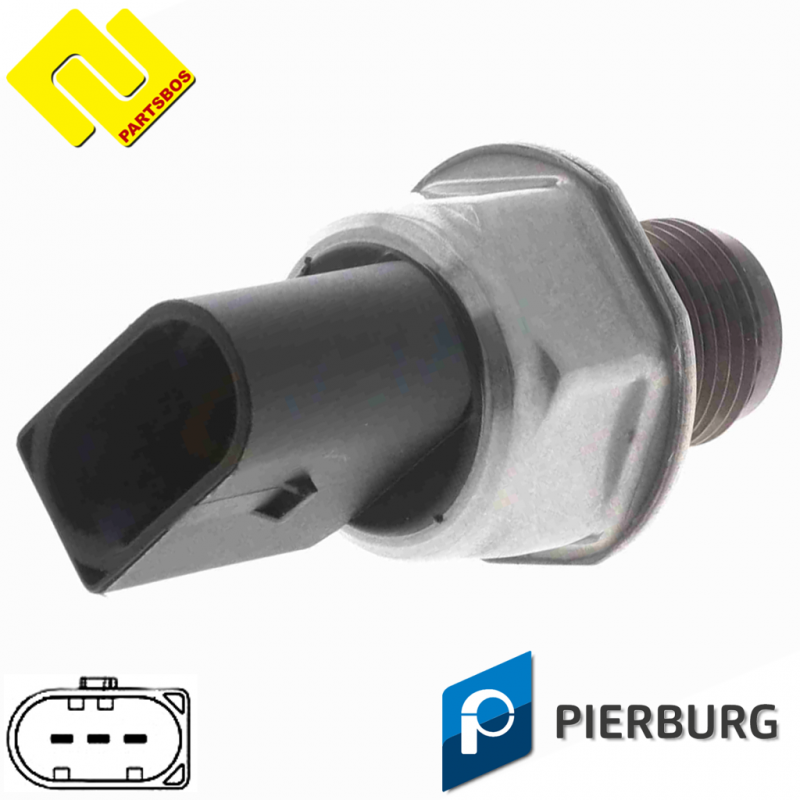

PIERBURG 7.11225.16.0

• Fuel pressure sensor ,CR SYSTEM ,
• Kraftstoff Drucksensor ,Kraftstoffdrucksensor ,
• Сензор Гориво налягане ,
• Papva Snímač tlaku ,
• Brændstof tryksensor ,
• Capteur de pression de carburant,système CR ,
• Brandstofdruksensor ,CR-systeem ,
• Gorivo senzor tlaka ,CR sustav ,
• Eldsneyti þrýstingur skynjari,CR kerfi ,
• Sensore di pressione carburante,sistema CR ,
• 燃料圧力センサ,CRシステム ,
• Fuel trykksensor ,Drivstofftrykk Sensor bränsletryck ,
• Czujnik ciśnienia papwa ,
• Sensor de pressão de combustível ,
• Senzorul de presiune a combustibilului,CR sistem ,
• Papvá Snímač tlaku,systém CR ,
• Pritisk goriva senzor ,
• Polttoaineen paine-anturi ,Polttoaine paine tunnistin,CR-järjestelmä ,
• Sensor de presión de combustible,sistema de CR ,
• Датчик тиску палива,CR система ,
• Üzemanyag nyomás érzékelő,CR rendszer ,
• Bränsle trycksensor,CR-system ,
• საწვავის წნევის სენსორი,CR სისტემა ,
• Αισθητήρα πίεσης καυσίμου,CR σύστημα ,
• Датчик давления топлива ,
• חיישן לחץ דלק,ברענוואַרג דרוק סענסער,
