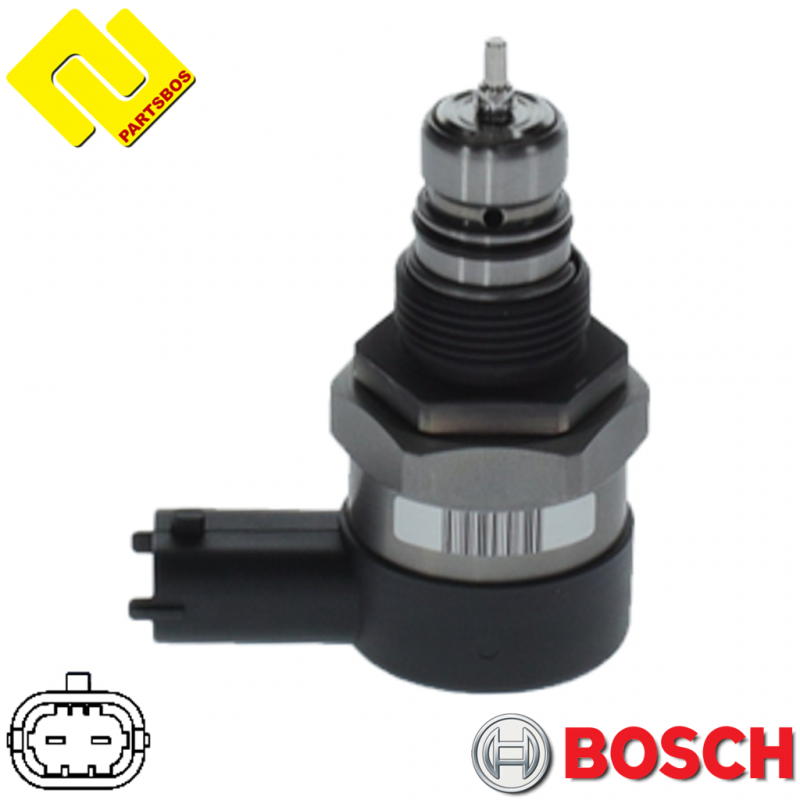

BOSCH 0281002990

(0)Review
€ 136.00
Tax included

Fuel Pressure Regulator

31216313 ,

for VOLVO ,

Genuine BOSCH Product

59 items

Volume discounts

QuantityPriceYou Save
3€ 136.00Up to € 20.40
Quantity
Add to wishlist
AVAILABLE
  • Fits for Vehicles: VOLVO


Security policy



Delivery policy



Return policy

Common Rail Fuel Pressure Regulator ,Control Valve.

for Fuel Rail/Pump pressure control.

INFO:

The fuel pressure control valve comprises a fuel-cooled solenoid valve.

The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.

When the pressure control valve is not activated, its internal spring maintains

a fuel pressure of about 100 Bar. When the valve is activated,

the force of the electromagnet aids the spring, reducing the opening of the valve

and so increasing fuel pressure. The fuel pressure control valve also acts as

a mechanical pressure damper, smoothing the high frequency pressure pulses

emanating from the radial piston pump when less than three pistons are activated.


This part is called by many names including:

  • MPROP
  • FCA
  • Injection Pressure Regulator
  • Fuel Pressure Regulator
  • Fuel Control Actuator
  • Measuring Unit
  • Fuel Measurement Solenoid Valve .



Analogous, Fully interchangeable with BOSCH 0281002990 :

VOLVO

31216313 ,

Fuel Pressure Regulator 0281002990 can be used on fuel distributor tubes/pumps :

BOSCH

0445215024 ,0445215025 ,

VOLVO

30777759 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!
  • The best way to buy this part is to get the number from your existing unit.
  • You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
  • Please make sure your existing part number matches one of the numbers listed above.
  • If the number/s do not match, then the part will not work with your vehicle.

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

If you need more information please do not hesitate to contact us .

CONTACT US

BOSCH 0 281 002 990

  • Fuel pressure control valve ,CR System ,
  • Fuel pressure Regulator,
  • Pressure regulating valve ,
  • Druckregelventil, Common-Rail-System ,Kraftstoffmessmagnetventil ,
  • ZAWOR DOZUJACY ,CR ,
  • Regulator ciśnienia ,
  • Nyomásszabályozó szelep, common rail rendszer ,
  • Spiediena regulators Common-Rail-Systēmai ,
  • Regulador de presión ,CR Systema ,
  • Regulador de pressão ,CR Sistema ,
  • Регулатор на налягането ,
  • Regulator tlaka ,
  • Regulátor tlaku ,Måle drivstoff magnetventil ,
  • Regulator tlaka ,
  • Paineensäädin ,
  • Regolatore di pressione ,
  • Valvola regolapressione ,Sistema Common-Rail ,
  • Regulator de presiune ,
  • Tryckregulator ,Trykreguleringsventil,
  • Þrýstingur eftirlitsstofnanna ,
  • Ρυθμιστής πίεσης ,
  • Дозировочный блок , Редукционный клапан ,
  • Регулятор давления подачи топлива ,
  • Дозувальний блок ,
  • Trykkreguleringsventil ,
  • Tryckreglerventil,
  • Paineensäätöventtiili, Common-Rail-järjestelmä ,
  • Détendeur, système de rampe commune ,
  • Drukregelklep,
  • Válvula control presión, Common Rail System ,
  • Valvola regolapressione, Sistema Common-Rail ,
  • 燃料圧力制御弁、
  • 燃料圧力レギュレータ、
  • ברענוואַרג דרוק קאָנטראָל וואַלוו ,שסתום בקרת לחץ דלק,

We Ship World Wide

Thank you for visiting our store! We carry wide range of quality automotive parts at affordable prices.

Please browse store's categories and feel free to contact us if you have any questions.

Please bookmark us and come again!

PARTSBOS.SHOP

BOSCH
P36112-BOS
59 Items

Data sheet

Manufacturer Part Number
0281002990
Reference OE/OEM Number
31216313
Fits for Vehicles
VOLVO
Number of Connectors
2
Spare Part Type
Fuel Pressure Regulator
Brand
BOSCH
Unit Type
Unit
Warranty Period
1 Year
Country/Region of Manufacture
Germany
Customs Code (HS)
84818059
UPIN
0 281 002 990

Specific References

THIS ITEM IS SUITABLE FOR VEHICLES :

Car Manufactured KW HP cc3
VOLVO C30 (533) D3 10.10-12.12 110 150 1984
VOLVO C30 (533) D4 10.10-12.12 130 177 1984
VOLVO C70 II Convertible (542) D3 10.10-06.13 110 150 1984
VOLVO C70 II Convertible (542) D4 10.10-06.13 130 177 1984
VOLVO S40 II (544) D3 10.10-12.12 110 150 1984
VOLVO S40 II (544) D4 10.10-12.12 130 177 1984
VOLVO S60 II (134) D3 05.12-12.15 100 136 1984
VOLVO S60 II (134) D3 04.10-12.14 120 163 1984
VOLVO S60 II (134) D4 04.10-12.14 120 163 1984
VOLVO S60 II (134) D4 AWD 03.15-05.18 140 190 2400
VOLVO S60 II (134) D5 04.14-12.15 169 230 2400
VOLVO S60 II (134) D5 04.11-12.15 158 215 2400
VOLVO S60 II (134) D5 04.10-12.11 151 205 2400
VOLVO S60 II (134) D5 AWD 04.10-12.11 151 205 2400
VOLVO S60 II (134) D5 AWD 04.14-12.15 169 230 2400
VOLVO S60 II (134) D5 AWD 04.11-12.15 158 215 2400
VOLVO S60 II Cross Country (134) D4 AWD 03.15-05.18 140 190 2400
VOLVO S60 II Cross Country (134) D4 Polestar AWD 03.15-07.18 162 220 2400
VOLVO S80 II (124) 2.4 D 03.06-03.11 120 163 2400
VOLVO S80 II (124) 2.4 D 01.10-03.11 129 175 2400
VOLVO S80 II (124) D3 05.12-05.14 100 136 1984
VOLVO S80 II (124) D3 / D4 01.10-12.16 120 163 1984
VOLVO S80 II (124) D5 01.10-12.11 151 205 2400
VOLVO S80 II (124) D5 06.11-04.15 158 215 2400
VOLVO S80 II (124) D5 AWD 06.11-04.15 158 215 2400
VOLVO S80 II (124) D5 AWD 01.10-12.11 151 205 2400
VOLVO V40 Cross Country (526) 2.0 D3 09.13-12.15 110 150 1984
VOLVO V40 Cross Country (526) 2.0 D4 09.13-12.14 130 177 1984
VOLVO V40 Cross Country (526) D3 10.12-03.15 110 150 1984
VOLVO V40 Cross Country (526) D4 10.12-12.14 130 177 1984
VOLVO V40 Hatchback (525) D3 03.12-03.15 110 150 1984
VOLVO V40 Hatchback (525) D4 03.12-12.14 130 177 1984
VOLVO V40 Hatchback Van (525) 2.0 D3 09.13-12.15 110 150 1984
VOLVO V40 Hatchback Van (525) 2.0 D4 09.13-12.14 130 177 1984
VOLVO V50 (545) D3 10.10-12.12 110 150 1984
VOLVO V50 (545) D4 10.10-12.12 130 177 1984
VOLVO V60 I (155) D3 05.12-12.15 100 136 1984
VOLVO V60 I (155) D3 / D4 07.10-12.14 120 163 1984
VOLVO V60 I (155) D4 AWD 10.13-12.15 133 181 2400
VOLVO V60 I (155) D4 AWD 03.15-05.18 140 190 2400
VOLVO V60 I (155) D4 AWD 05.12-12.15 120 163 2400
VOLVO V60 I (155) D5 04.14-12.15 169 230 2400
VOLVO V60 I (155) D5 04.11-12.15 158 215 2400
VOLVO V60 I (155) D5 07.10-12.11 151 205 2400
VOLVO V60 I (155) D5 AWD 04.14-12.15 169 230 2400
VOLVO V60 I (155) D5 AWD 04.11-12.15 158 215 2400
VOLVO V60 I (155) D5 AWD 07.10-12.11 151 205 2400
VOLVO V60 I (155) D5 Hybrid AWD 03.15-05.18 169 230 2400
VOLVO V60 I (155) D6 Hybrid AWD 06.12-12.15 206 280 2400
VOLVO V60 I (155) D6 Hybrid AWD 03.15-05.18 206 280 2400
VOLVO V60 I Cross Country (157) D4 AWD 03.15-05.18 140 190 2400
VOLVO V60 I Cross Country (157) D4 Polestar AWD 03.15-05.18 147 200 2400
VOLVO V60 I Estate Van (155) 2.0 D3 09.13-12.15 100 136 1984
VOLVO V60 I Estate Van (155) 2.0 D4 09.13-12.15 120 163 1984
VOLVO V60 I Estate Van (155) 2.4 D4 AWD 09.13-12.15 133 181 2400
VOLVO V60 I Estate Van (155) 2.4 D5 09.13-12.15 158 215 2400
VOLVO V70 III (135) 2.4 D 04.09-12.10 129 175 2400
VOLVO V70 III (135) D3 10.07-12.15 100 136 1984
VOLVO V70 III (135) D3 / D4 03.10-12.15 120 163 1984
VOLVO V70 III (135) D4 AWD 10.13-04.16 133 181 2400
VOLVO V70 III (135) D4 AWD 10.07-12.15 120 163 2400
VOLVO V70 III (135) D5 10.08-12.11 151 205 2400
VOLVO V70 III (135) D5 03.11-04.16 169 230 2400
VOLVO V70 III (135) D5 04.11-12.15 158 215 2400
VOLVO V70 III (135) D5 AWD 03.11-04.16 169 230 2400
VOLVO V70 III (135) D5 AWD 12.09-12.11 151 205 2400
VOLVO V70 III (135) D5 AWD 04.11-12.15 158 215 2400
VOLVO V70 III Estate Van (135) 2.4 D5 09.13-12.15 158 215 2400
VOLVO XC60 I SUV (156) 2.4 D 04.09-12.10 129 175 2400
VOLVO XC60 I SUV (156) 2.4 D / D3 / D4 AWD 05.08-02.17 120 163 2400
VOLVO XC60 I SUV (156) D3 04.12-12.15 100 136 1984
VOLVO XC60 I SUV (156) D3 / D4 03.10-12.14 120 163 1984
VOLVO XC60 I SUV (156) D4 AWD 03.15-02.17 140 190 2400
VOLVO XC60 I SUV (156) D4 AWD 10.13-12.15 133 181 2400
VOLVO XC60 I SUV (156) D5 06.11-02.17 158 215 2400
VOLVO XC60 I SUV (156) D5 AWD 04.14-12.15 169 230 2400
VOLVO XC60 I SUV (156) D5 AWD 07.09-06.11 151 205 2400
VOLVO XC60 I SUV (156) D5 AWD 03.11-12.15 158 215 2400
VOLVO XC60 I SUV (156) D5 AWD 03.15-02.17 162 220 2400
VOLVO XC60 I VAN (156) D3 09.13-12.15 100 136 1984
VOLVO XC60 I VAN (156) D4 09.13-02.17 120 163 1984
VOLVO XC60 I VAN (156) D4 AWD 09.13-02.17 120 163 2400
VOLVO XC60 I VAN (156) D5 AWD 09.13-02.17 158 215 2400
VOLVO XC70 II (136) 2.4 D 06.09-12.10 129 175 2400
VOLVO XC70 II (136) 2.4 D / D4 AWD 08.07-04.16 120 163 2400
VOLVO XC70 II (136) D3 04.10-12.15 120 163 1984
VOLVO XC70 II (136) D4 AWD 10.13-04.16 133 181 2400
VOLVO XC70 II (136) D5 AWD 11.13-04.16 169 230 2400
VOLVO XC70 II (136) D5 AWD 03.15-04.16 162 220 2400
VOLVO XC70 II (136) D5 AWD 04.09-12.11 151 205 2400
VOLVO XC70 II (136) D5 AWD 04.11-12.15 158 215 2400
VOLVO XC70 II VAN (136) 2.0 D4 09.13-12.16 120 163 1984
VOLVO XC70 II VAN (136) 2.4 D4 AWD 09.13-04.16 120 163 2400
VOLVO XC70 II VAN (136) 2.4 D5 AWD 09.13-12.16 158 215 2400

​May fits for other, not listed, Vehicles-Models
