• Terminals: 3
• Cable [mm]: 240
• Inductive Sensor
• Flywheel side

 INFO:

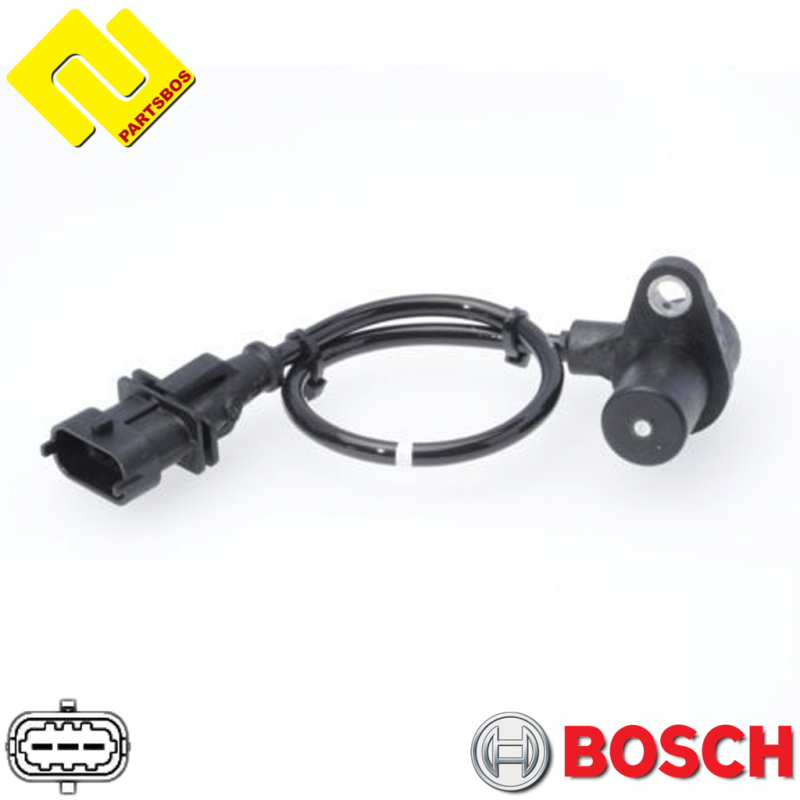

  The crankshaft sensor measures the rotational speed of the motor. It consists of a permanent magnet and an induction coil with a soft-iron core. A gear rim is fitted to the fly wheel as a pulse transmitter. There is only a small air gap between the inductive transmitter and the gear rim.

  The magnetic flow through the coil depends on whether there is a gap or a gear tooth opposite the sensor. A gear tooth will focus the magnet‘s leakage flux while a gap reduces the magnetic flux. As the fly wheel and thus the gear rim rotates, each individual gear tooth causes a change in the magnetic field. These changes in the magnetic field create induction voltage inside the coil.

  The rotational speed of the fly wheel can be measured by the number of impulses per time unit. Deliberate gaps in the gear rim enable the control unit to detect the current position of the motor as well. The motor‘s rotational speed is the main control factor for determining the mixture and for ignition advance.

FIAT

55220973

FORD

WLBD18221A ,4863581 ,6M356C315AA ,6M35-6C315-AA ,

MAZDA

WLBD-18-221 ,WLBD18221 ,WLBD-18-221A ,WLBD18221 ,

75171191 ,ECP-FR-007 ,SS11491 ,550435 ,SEB1357 ,366581 ,CMC3-V205 ,

• The best way to buy this part is to get the number from your existing unit.
• You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
• Please make sure your existing part number matches one of the numbers listed above.
• If the number/s do not match, then the part will not work with your vehicle.

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

If you need more information please do not hesitate to contact us .
