Timing belts enable synchronous positive-fit power transmission in car engines. Timing belts guarantee absolutely synchronous power transmission since a positive-fit connection is created between the drive pulley and the belt by means of the teeth. In internal combustion engines they are used to drive camshafts, fuel injection pumps, balancer shafts and water pumps . The high quality timing belts guarantees perfect performance.
Timing belts are subject to aging and wear. They therefore have to be regularly checked and replaced.
The checking and replacement intervals are always specified by the vehicle manufacturer and must be complied with.
Number of Teeth :150
Width [mm] :23
Length [mm] :1200
Belts with rounded** tooth profile
Use only in vehicles with a hydraulic tensioning system
In Set Excluded the Tensioner element (VKM11117 )

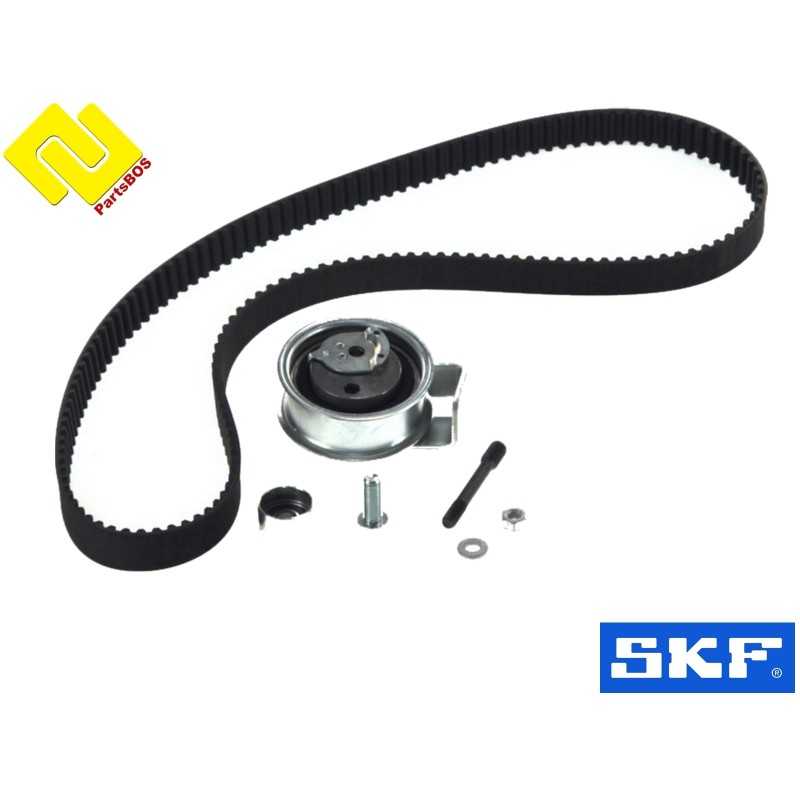

| Name : | Part Nr : | Parameters : |
| Tensioner Pulley: | VKM11018 | Ø: 72 mm, Width: 25 mm |
| Deflection/Guide Pulley 1: | VKM21220 | Ø: 29 mm, Width: 27 mm |
| Timing Belt : | VKMT01135 | Teeth Quant.: 150, Width: 23 mm |
| Stud : | SKF05895 | |
| Nut : | SKF01704 | |
| Washer : | SKF06255 | Component No.: 06255 |
Products supplied by us are without exception intended for the designated use.
Please note that our products are usually delivered without installation instructions. Installation may only be carried out by trained specialist personnel.
There is no guarantee for inappropriate, improper or unintended use.
| Part Manufacturer | Part Number : |
| AUDI | 06B109119A ,06B109119B ,06B109119C ,06B109119F ,06B109166 ,06B109243B ,06B109243E ,06B109244 ,06B198119A ,06B 198 119 A ,06B109119L ,N01100830 ,N01100840 ,N01100845 ,N0152782 ,N0152785 ,06B 109 119 A ,06B 109 119 B ,06B 109 119 F ,06B 109 119 L ,06B 109 119 M , |
| FIAT | 15501011 ,16100811 , |
| LANCIA | 16100811 , |
| SEAT | 06B109119A ,06B109119B ,06B109119C ,06B109119F ,06B109166 ,06B109243B ,06B109243E ,06B109244 ,06B198119A ,16100811 ,N01100830 ,N01100840 ,N01100845 ,N0152782 ,N0152785 , |
| SKODA | 06B109119A ,06B109119B ,06B109119C ,06B109119F ,06B109166 ,06B109243B ,06B109243E ,06B109244 ,06B198119A ,N01100830 ,N01100840 ,N01100845 ,N0152782 ,N0152785 , |
| VW | 06B109119A ,06B109119B ,06B109119C ,06B109119F ,06B109166 ,06B109243B ,06B109243E ,06B109244 ,06B198119A ,06B 198 119A ,06B109119M ,N01100830 ,N01100840 ,N01100845 ,N0110088 ,N0152782 ,N0152785 ,06B 109 119A ,06B 109 119B ,06B 109 119F ,06B 109 119L ,06B 109 119M , |
| BGA | TB0105K , |
| BOSCH | 1987948157 ,1987948039 ,1987948593 ,1 987 948 157 ,1 987 948 039 ,1 987 948 593 , |
| CONTINENTAL/CONTITECH | CT909K4 , |
| DAYCO | KTB475 , |
| DELPHI | KDB475 , |
| FAI AutoParts | TBK476 , |
| FEBI BILSTEIN | 24755 , |
| GATES | K035491XS , |
| HUTCHINSON | KH 335 ,KH335 , |
| INA | 530 0180 10 ,530018010 ,530 0546 10 ,530054610 , |
| JP GROUP | 1112111410 , |
| KM International | KFI375 , |
| LUCAS | LDK0164 , |
| MAGNETI MARELLI | 341311861201 ,MM1186K1 , |
| MAPCO | 23901 , |
| METZGER | WM-Z 475 , |
| OPTIBELT | KT 1232 ,KT1232 , |
| OPTIMAL | SK-1640 , |
| Parts BOS | P93015 , |
| ROULUNDS | RR1186K7 , |
| RUVILLE | 5549670 , |
| SKF | VKMA01918 , VKMA 01918 ,VKMA-01918 ,VKMC 01918-1 ,VKMC01918-1 ,VKMC 01918-2 ,VKMC01918-2 ,VKMA 01018 ,VKMA-01018 , |
| SNR | KD457.45 , |
| SWAG | 32 92 4755 ,32924755 , |
| TOPRAN | 111 205 ,111205 , |
| TRISCAN | 8647 29072 ,864729072 , |
| VAICO | V10-4232 , |
| VEYANCE/GOOD | K6G1445H , |
If you need more information please do not hesitate to contact us .
