      • PIERBURG Throttle Body PARTSBOS

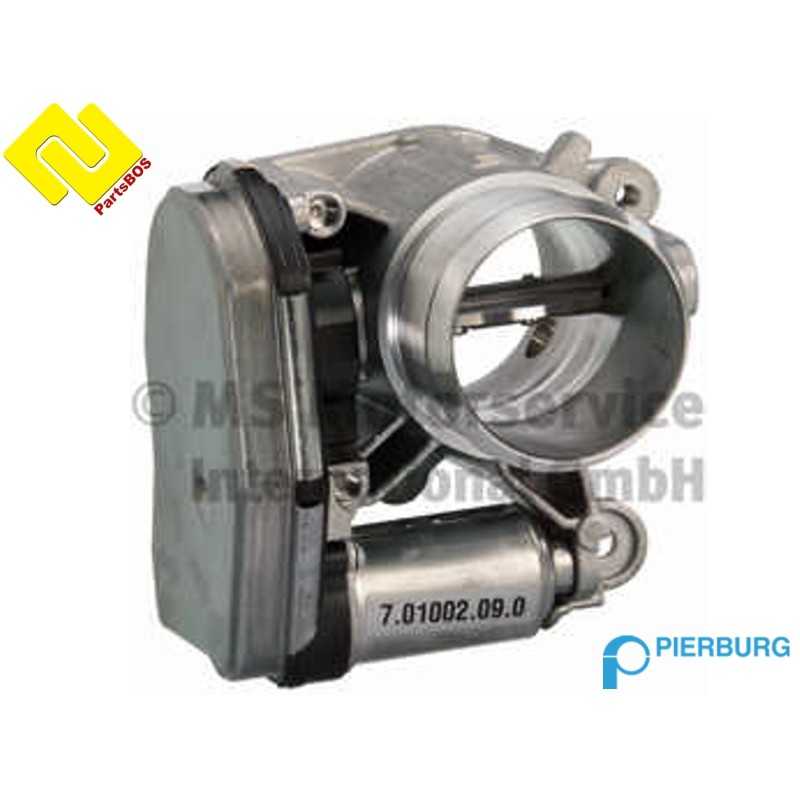

      PIERBURG 7.01002.09.0

      (0)Review
      € 126.00
      Tax included

      Throttle Body

      7.01002.07.0 ,0345.E0  ,0345.F7  ,9656932580 ,1427361 ,1566190 ,6G9Q9E926BA ,6G9Q9E926CA ,LR001001 ,LR012598 ,7.01002.05.0 ,

      Vehicle: CITROËN ,FORD ,LAND ROVER ,PEUGEOT ,

      Made in Germany

      0 items

      Volume discounts

      QuantityPriceYou Save
      3€ 126.00Up to € 18.90
      Quantity
      Out-of-Stock

      Last time this product was added to a cart: 2021/07/30

      • Superseded Part Number: 7.01002.05.0 ,7.01002.07.0 ,


      Security policy



      Delivery policy



      Return policy

      Throttle Body.

      Air Flap Actuator ,
      Throttle Actuator ,
      Control Flap Air Supply .

      Parameters:

      Operating Mode: Electronic
      Diameter [mm] : 50 mm
      Voltage: 12 V

      INFO:

      Electromotive throttle valve:

      In this type of throttle, the throttle valve is mechanically linked to the accelerator pedal. The angle of the valve is monitored by the throttle electronics, which remain in constant communi-cation with the engine management system. The resulting data is compared in real time with a range of information from other onboard sensors. The engine management system calculates the optimum throttle position in terms of both fuel economy and emissions. This information is then fed back to the throttle electronics, which adjust the throttle angle as required.


      Electronic throttle valves:

      The electronic accelerator’s pulse and all other available data from the engine management system’s sensors are permanently calibrated. The optimum throttle valve position is calculated from this information. The electronic throttle valve is only activated by the control signal from the engine management system.


      Air flap actuator:

      The electric actuator with integrated position sensor and optional integrated electronics allows intake manifold throttles or turbo charge guide vanes for example to be continuously adjusted. Its more precise control means that it is taking the place of standard pneumatic drives which can no longer satisfy the more stringent requirements.



      Analogous, Fully interchangeable with PIERBURG 7.01002.09.0 :

      CITROEN0345E0 ,0345.E0 ,
      CITROEN9656932580 ,
      CITROEN9687888280 ,
      FORD1427361 ,
      FORD1566190 ,
      FORD6G9Q9E926BA ,6G9Q-9E926-BA ,
      FORD6G9Q9E926CA ,6G9Q-9E926-CA ,
      LANDROVERLR001001 ,
      LANDROVERLR012598 ,
      PEUGEOT0345E0 ,0345.E0 ,
      PEUGEOT0345F7 ,0345.F7  ,
      PEUGEOT MOTORCYCLES0345E0 ,0345.E0 ,
      PEUGEOT MOTORCYCLES0345F7 ,0345.F7  ,
      !!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!
      The best way to buy this part is to get the number from your existing unit.
      You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
      Please make sure your existing part number matches one of the numbers listed above.
      If the number/s do not match, then the part will not work with your vehicle.

      If you need more information please do not hesitate to contact us .

       ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !


      PIERBURG 7.01002.09.0

      Throttle Body ,Air Doser,
      Air Flap Actuator ,
      Throttle Actuator ,
      Control Flap Air Supply .
      Valvole a farfalla elettromeccaniche ,
      Elektromotorische Drosselklappe ,Steuerklappe,
      Corps papillon compact ,
      Válvula del acelerador con control electromotriz ,




      Thank you for visiting our store! We carry wide range of quality automotive parts at affordable prices.

      Please browse store's categories and feel free to contact us if you have any questions.

      Please bookmark us and come again!

      www.partsbos.com

      PIERBURG
      P16005-PIE

      Data sheet

      Manufacturer Part Number
      7.01002.09.0
      Reference OE/OEM Number
      LR012598 ,6G9Q9E926CA ,1566190 ,0345.F7 ,
      Superseded Part Number
      7.01002.05.0 ,7.01002.07.0 ,
      Fits for Vehicles
      CITROËN ,FORD ,LAND ROVER ,PEUGEOT
      Brand Type
      Aftermarket Branded
      Country/Region of Manufacture
      Germany

      Specific References

      THIS ITEM IS SUITABLE FOR VEHICLES :

      CarManufacturedKWHPcc3
      CITROËN C-CROSSER (VU_, VV_) 2.2 HDi02.07-1151562179
      CITROËN C-CROSSER ENTERPRISE (VU_, VV_) 2.2 HDi01.09-1151562179
      CITROËN C5 II (RC_) 2.2 HDi05.06-1201632179
      CITROËN C5 II (RC_) 2.2 HDi04.06-1251702179
      CITROËN C5 II Break (RE_) 2.2 HDi04.06-1251702179
      CITROËN C5 II Break (RE_) 2.2 HDi05.06-1201632179
      CITROËN C5 III (RD_) 2.2 HDi04.09-12.111201632179
      CITROËN C5 III (RD_) 2.2 HDi02.08-1251702179
      CITROËN C5 III (RD_) 2.2 HDi 20007.10-1502042179
      CITROËN C5 III Break (RW_) 2.2 HDi02.08-1251702179
      CITROËN C5 III Break (RW_) 2.2 HDi 16502.08-1201632179
      CITROËN C5 III Break (RW_) 2.2 HDi 20007.10-1502042179
      CITROËN C6 (TD_) 2.2 HDi06.06-12.121251702179
      CITROËN C6 (TD_) 2.2 HDi06.06-12.101201632179
      CITROËN C8 (EA_, EB_) 2.2 HDi06.06-1251702179
      CITROËN C8 (EA_, EB_) 2.2 HDi06.07-1201632179
      FIAT ULYSSE (179_) 2.2 D Multijet03.08-06.111251702179
      FIAT ULYSSE (179_) 2.2 JTD03.08-06.111201632179
      FORD GALAXY II (WA6) 2.2 TDCi11.10-06.151472002179
      FORD GALAXY II (WA6) 2.2 TDCi03.08-12.121291752179
      FORD MONDEO IV (BA7) 2.2 TDCi07.10-01.151472002179
      FORD MONDEO IV (BA7) 2.2 TDCi03.08-10.101291752179
      FORD MONDEO IV Saloon (BA7) 2.2 TDCi03.08-10.101291752179
      FORD MONDEO IV Saloon (BA7) 2.2 TDCi10.10-01.151472002179
      FORD MONDEO IV Turnier (BA7) 2.2 TDCi07.10-01.151472002179
      FORD MONDEO IV Turnier (BA7) 2.2 TDCi03.08-10.101291752179
      FORD MONDEO IV Van 2.2 TDCi03.13-09.141472002179
      FORD S-MAX (WA6) 2.2 TDCi03.08-12.121291752179
      FORD S-MAX (WA6) 2.2 TDCi07.10-12.141472002179
      JAGUAR XF I (X250) 2.2 D04.11-04.151201632179
      JAGUAR XF I (X250) 2.2 D03.12-04.151472002179
      JAGUAR XF I (X250) 2.2 D05.11-04.151401902179
      JAGUAR XF SPORTBRAKE (X250) 2.2 D09.12-04.141472002179
      JAGUAR XF SPORTBRAKE (X250) 2.2 D09.12-04.141201632179
      LANCIA PHEDRA (179_) 2.2 D Multijet (179.AXM1B, 179.AXP11, 1..03.08-11.101251702179
      LANCIA PHEDRA (179_) 2.2 JTD (179.AXN1B, 179.AXQ11, 179.BXN1..04.06-11.101201632179
      LAND ROVER DISCOVERY SPORT (L550) 2.2 D 4x409.14-1101502179
      LAND ROVER DISCOVERY SPORT (L550) 2.2 D 4x409.14-1401902179
      LAND ROVER FREELANDER 2 (L359) 2.2 eD408.10-10.141101502179
      LAND ROVER FREELANDER 2 (L359) 2.2 SD4 4x408.10-10.141401902179
      LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x410.06-10.141151562179
      LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x410.06-10.141181602179
      LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x401.07-10.141121522179
      LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x410.06-10.141101502179
      LAND ROVER FREELANDER 2 VAN (L359) 2.2 TD4 4x410.06-10.141181602179
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D06.11-12.191101502179
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x406.11-12.191101502179
      LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x406.11-12.191401902179
      MITSUBISHI OUTLANDER II (CW_W) 2.2 DI-D 4WD08.07-11.121151562179
      PEUGEOT 4007 (VU_, VV_) 2.2 HDi02.07-03.131151562179
      PEUGEOT 407 (6D_) 2.2 HDi03.06-12.101201632179
      PEUGEOT 407 (6D_) 2.2 HDi 17003.06-12.101251702179
      PEUGEOT 407 SW (6E_) 2.2 HDi06.08-12.101201632179
      PEUGEOT 407 SW (6E_) 2.2 HDi 17003.06-12.101251702179
      PEUGEOT 508 I (8D_) 2.2 HDi11.10-12.181502042179
      PEUGEOT 508 SW Estate Van (8E_) 2.2 HDi11.11-1502042179
      PEUGEOT 508 SW I (8E_) 2.2 HDi11.10-12.181502042179
      PEUGEOT 607 (9D, 9U) 2.2 HDi05.06-06.101251702179
      PEUGEOT 807 (EB_) 2.2 HDi06.06-1201632179
      PEUGEOT 807 (EB_) 2.2 HDi06.06-1251702179

      ​May fits for other, not listed, Vehicles-Models
