Technical data:

• Pressure range (bar): 0.10 - 4.0 bar (10 - 400 kpa) ,
• Voltage limitation (mV): 193-3896 ,
• Number of ports: 3 ,
• Integrated air temperature sensor :Yes

Info:

Manifold Absolute Pressure Sensors, or MAP Sensors as they are more commonly known, are used to measure inlet manifold “pressure’ to give an

indication of engine load.

These sensors are generally used in “Speed/Density” or “Manifold Pressure

Controlled” engine management systems that do not use an Air Flow/Mass

Sensor.

Sensors have either over three or four poles:

1. Mass
2. Output signal, 0 to 4.5 Volt
3. Supply voltage, mostly 5.0 Volt
4. Optional: Temperature measurement (NTC)

Faulty MAP sensor symptoms:

• Rough idle.
• Surging.
• Loss of power and/or fuel economy due to retarded timing and an excessively rich fuel ratio.
• Detonation due to too much spark advance and a lean fuel ratio.
• A rich fuel condition, which may cause spark plug fouling.

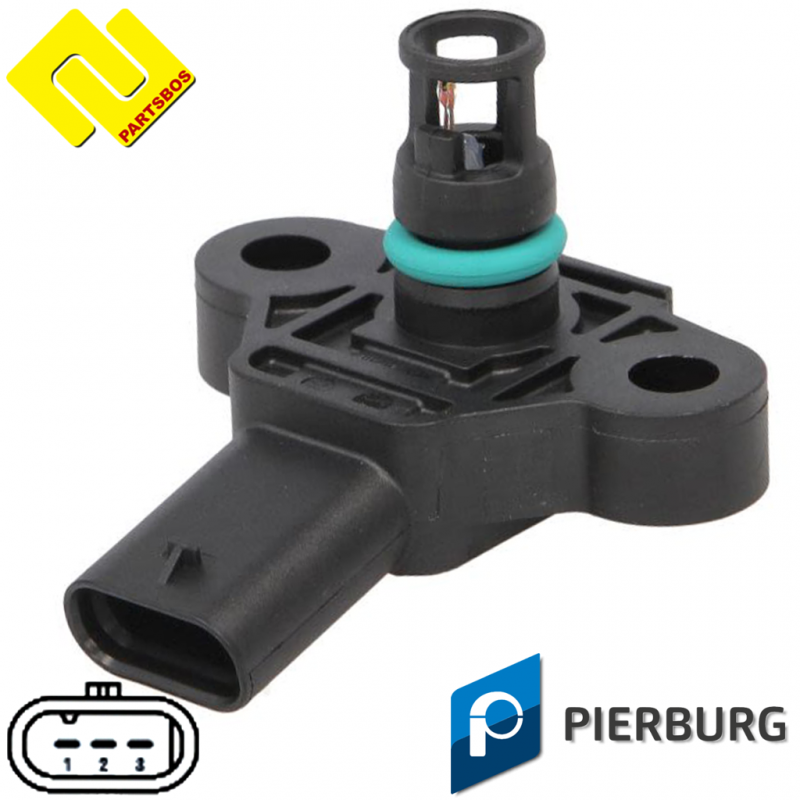

Analogous, Fully interchangeable with PIERBURG 7.18222.48.0 :

OE p.n:

AUDI

04E906051H ,04E906051J ,04E906051N ,

CUPRA

04E906051H ,04E906051J ,04E906051N ,

FORD

N3CZ-9F479-C ,N3CZ9F479C ,

N3CZ-9F479-G ,N3CZ9F479G ,

VWN3CA-9F479-BA ,VWN3CA9F479BA ,

VWN3CA-9F479-EA ,VWN3CA9F479EA ,

2746915 ,2783384 ,

SEAT

04E906051H ,04E906051J ,04E906051N ,

SKODA

04E 906 051H ,04E 906 051J ,04E 906 051N ,

VW

04E 906 051 H ,04E 906 051 J ,04E 906 051 N ,

Alternate p.n :

366897 ,PS20087-12B1 ,2508252 ,V10-72-0251 ,74723069 ,10.3439 ,185911 ,

138252 ,PS20087 ,74164 ,121794 ,AS5757 ,70670021 ,70670023 ,0906371 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

• The best way to buy this part is to get the number from your existing unit.
• You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
• Please make sure your existing part number matches one of the numbers listed above.
• If the number/s do not match, then the part will not work with your vehicle.

 ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !

If you need more information please do not hesitate to contact us .

• BOOST PRESSURE SENSOR, INTAKE MANIFOLD PRESSURE SENSOR ,
• LADEDRUCKSENSOR , SAUGROHRDRUCKSENSOR,
• BOOST TRYKSENSOR, INDSUGNINGSMANIFOLD TRYKSENSOR ,
• BOOST CAPTEUR DE PRESSION, CAPTEUR DE PRESSION ADMISSION DE COLLECTEUR ,
• CAPTEUR, PRESSION DE SURApMENTATION ,
• SNÍMAČ PLNICÍHO TLAKU, TLAK V SACÍM POTRUBÍ SNÍMAČE ,
• SNÍMAČ PLNIACEHO TLAKU, TLAK V SACOM POTRUBÍ SNÍMAČA ,
• BOOST SENZOR TLAKA, SESALNI KOLEKTOR SENZOR TLAKA ,
• BOOST DRUKSENSOR, INLAATSPRUITSTUK DRUKSENSOR ,
• POTICAJ SENZOR TLAKA, USISNI TLAK SENZOR ,
• TUNNISTIN, IMUSARJAPAINE ,IMUSARJAPAINE TUNNISTIN ,
• UPPÖRVUN ÞRÝSTINGI SKYNJARA, LOFTINNTAK MARGVÍSLEGA ÞRÝSTINGUR SKYNJARA ,
• BOOST SENSORE DI PRESSIONE, SENSORE DI PRESSIONE COLLETTORE DI ASPIRAZIONE ,
• BOOST TRYKKSENSOR, INNTAK MANIFOLD TRYKKSENSOR ,
• SISSELASKEKOLLEKTORI RÕHU ANDUR,
• LADDTRYCKSGIVARE, INLOPPSTRYCK SENSOR,
• ZWIĘKSZ KOLEKTOR CZUJNIK CIŚNIENIA, CZUJNIK CIŚNIENIA DOLOTOWEGO ,
• IMPULSIONAR SENSOR DE PRESSÃO, SENSOR DE PRESSÃO DO COLETOR DE ADMISSÃO ,
• BOOST SENSOR DE PRESIÓN, SENSOR DE PRESIÓN DEL COLECTOR DE ADMISIÓN ,B
• BOOST SENZOR DE PRESIUNE, SENZOR DE PRESIUNE COLECTORUL DE ADMISIE ,
• UPPÖRVUN ÞRÝSTINGUR SKYNJARI, INNTAKA MARGVÍSLEGA ÞRÝSTINGUR SKYNJARI,
• BOOST PAINEANTURI, IMUSARJAN PAINEANTURI ,
• TÖLTŐNYOMÁS ÉRZÉKELŐ, SZÍVÓCSŐ NYOMÁS ÉRZÉKELŐ ,
• BOOST TRYCKGIVARE, INSUGSGRENRÖRETS TRYCKGIVARE ,
• UZLĀDES SPIEDIENA SENSORS,IEPLŪDES KOLEKTORA SPIEDIENA SENSORS,
• ĮPURŠKIMO SLĖGIO DAVIKpS, SLĖGIS ĮSIURBIMO KOLEKTORIUJE DAVIKpS,
• ისევე როგორც ზეწოლას სენსორი, შემშვები კოლექტორი წნევის სენსორი ,
• استشعار الضغط، تناول استشعار الضغط المتعددة،
• ΕΝΙΣΧΎΣΤΕ ΑΙΣΘΗΤΉΡΑ ΠΊΕΣΗς, Η ΠΡΌΣΛΗΨΗ ΑΙΣΘΗΤΉΡΑ ΠΊΕΣΗς ΠΟΛΛΑΠΛΉς ,
• חיישן לחץ, חיישן לחץ סעפת יניקה,
• 압력 센서, 흡기 매니 폴드 압력 센서,
• УВЕЛИЧЕТЕ НАЛЯГАНЕТО СЕНЗОР, СЕНЗОР НАЛЯГАНЕ СМУКАТЕЛНА ТРЪБА ,
• ДАТЧИК ТИСКУ НАДДУВУ, ДАТЧИК ТИСК У ВПУСКНОМУ КОЛЕКТОРІ ,
• ДАТЧИК ДАВЛЕНИЯ НАДДУВА, ДАТЧИК ДАВЛЕНИЯ ВО ВПУСКНОМ КОЛЛЕКТОРЕ .
