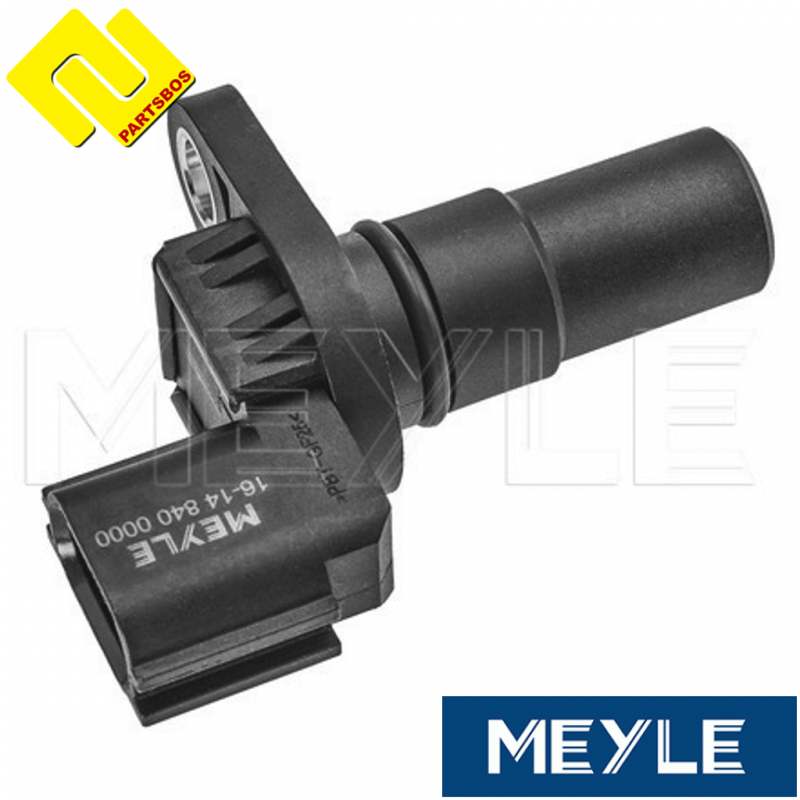

MEYLE 16-148400000
€ 36.70
Tax included
Automatic Transmition RPM Sensor
2702A036 ,7701067658 ,G4T07381 ,31935AN600 ,
for MITSUBISHI ,NISSAN ,RENAULT ,
Made in ITALY
Security policy
Delivery policy
Return policy
Automatic transmition Sensor.
A/T Speed Sensor .
Parameters:
Terminals: 3
Cable: Without
Hall Sensor
INFO:
The crankshaft sensor measures the rotational speed of the motor. It consists of a permanent magnet and an induction coil with a soft-iron core. A gear rim is fitted to the fly wheel as a pulse transmitter. There is only a small air gap between the inductive transmitter and the gear rim.
The magnetic flow through the coil depends on whether there is a gap or a gear tooth opposite the sensor. A gear tooth will focus the magnet‘s leakage flux while a gap reduces the magnetic flux. As the fly wheel and thus the gear rim rotates, each individual gear tooth causes a change in the magnetic field. These changes in the magnetic field create induction voltage inside the coil.
The rotational speed of the fly wheel can be measured by the number of impulses per time unit. Deliberate gaps in the gear rim enable the control unit to detect the current position of the motor as well. The motor‘s rotational speed is the main control factor for determining the mixture and for ignition advance.
Analogous, Fully interchangeable with MEYLE 16-148400000 ,MEX1118 :
FIAT 9948812
MITSUBISHI G4T07371 ,G4T07381 ,
NISSAN 31935-AN600 ,319351XK0C ,
RENAULT 7701065844 ,7701067658 ,
Alternate :
064848285010 ,V46-72-0136 ,701517 ,9.0710 ,79489 ,SEB5044 ,
!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!
The best way to buy this part is to get the number from your existing unit.
You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
Please make sure your existing part number matches one of the numbers listed above.
If the number/s do not match, then the part will not work with your vehicle.
If you need more information please do not hesitate to contact us .
ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !
MEYLE 16-14 840 0000
- Automatic Transmission Speed Sensor,
- Automatic Transmition RPM sensor ,
- Automatic Transmition pulse sensor ,
- Kurbelwellensensor ,
- RPM Sensor ,
- Sensor Automatic Transmition ,AT Sensor ,
- Snímač postavení klikového hřídele,
- Snímač postavenie kľukového hriadeľa,
- Motorne gredi senzor ,
- Főtengely érzékelő,
- Krumtapakslen sensor,
- Krukassensor,
- Väntvõlli andur,
- Kampiakselin anturi,
- Sveifarás skynjara,
- Capteur de vilebrequin,
- Sensore albero motore,
- Veivaksel sensor,
- Vevaxelgivare,
- Czujnik wału korbowego,
- Sensor de virabrequim,
- Senzorul arborelui cotit,
- Sensor del cigüeñal,
- Synhwyrydd crankshaft,
- Sensor del cigonyal,
- Коляновия вал сензор,
- Radilice senzor,
- Senzor radilice,
- Alkūninis velenas jutiklis,
- Krank mili sensörü,
- Αισθητήρα στροφαλοφόρου άξονα,
- חיישן גל ארכובה,
- קראַנקשאַפט סענסער,
- 傳感器，曲軸
- 크랭크 샤프트 센서,
- Сензор радилице,
- Датчык становішча каленчатага вала,
- Датчик положення колінчастого валу,
- Датчик положения коленчатого вала,
- クランク軸回転数センサ、
Thank you for visiting our store! We carry wide range of quality automotive parts at affordable prices.
Please browse store's categories and feel free to contact us if you have any questions.
Please bookmark us and come again!
P42072-MEY
2 Items
Data sheet
- Manufacturer Part Number
- 16-148400000
- Reference OE/OEM Number
- 2702A036 ,7701067658 ,G4T07381 ,31935AN600
- Superseded Part Number
- MEX1118
- Other Part Number
- V46-72-0136 ,7517935 ,SEB5044,064848285010 ,9.0710
- Fits for Vehicles
- FIAT ,MITSUBISHI ,NISSAN ,RENAULT ,
- Number of Connectors
- 3
- Sensor
- Crankshaft Position Sensor
- Type
- Hall Sensor
- Spare Part Type
- Sensor
- Country/Region of Manufacture
- Germany
Specific References
THIS ITEM IS SUITABLE FOR VEHICLES :
| Car | Manufactured | KW | HP | cc3 |
| FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DY.. | 09.01-10.04 | 59 | 80 | 1242 |
| FIAT PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .33.. | 09.99-04.06 | 59 | 80 | 1242 |
| FIAT PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, ... | 09.99-12.10 | 44 | 60 | 1242 |
| FIAT PUNTO (188_) 1.8 130 HGT (188.738, .718) | 09.99-03.12 | 96 | 130 | 1747 |
| FIAT PUNTO Hatchback Van (188_) 1.2 60 | 02.00-10.09 | 44 | 60 | 1242 |
| FIAT SIENA (178_, 172_) 1.3 | 09.01-12.09 | 59 | 80 | 1242 |
| MITSUBISHI OUTLANDER II (CW_W) 3.0 4WD (CW6W) | 11.06-11.12 | 162 | 220 | 2998 |
| MITSUBISHI OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) 2.2 Di-D (.. | 08.12- | 110 | 150 | 2268 |
| MITSUBISHI OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) 2.2 Di-D 4.. | 08.12- | 110 | 150 | 2268 |
| NISSAN MICRA II (K11) 1.0 i 16V | 07.00-02.03 | 44 | 60 | 998 |
| NISSAN MICRA II (K11) 1.0 i 16V | 08.92-07.00 | 40 | 54 | 998 |
| NISSAN MICRA II (K11) 1.4 i 16V | 09.00-02.03 | 60 | 82 | 1348 |
| NISSAN MURANO II (Z51) 2.5 dCi 4x4 | 01.10-09.14 | 140 | 190 | 2488 |
| NISSAN QASHQAI / QASHQAI +2 I (J10, NJ10, JJ10E) 2.0 dCi | 02.07-12.13 | 110 | 150 | 1995 |
| NISSAN QASHQAI / QASHQAI +2 I (J10, NJ10, JJ10E) 2.0 dCi All.. | 02.07-12.13 | 110 | 150 | 1995 |
| NISSAN X-TRAIL II (T31) 2.0 dCi 4x4 | 06.07-11.13 | 110 | 150 | 1995 |
| NISSAN X-TRAIL II (T31) 2.0 dCi 4x4 | 06.07-11.13 | 127 | 173 | 1995 |
| RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK01, JK02, JK1J, JK1K, .. | 01.06- | 110 | 150 | 1995 |
| RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK02, JK03) | 01.06- | 96 | 131 | 1995 |
| RENAULT ESPACE IV (JK0/1_) 2.0 dCi (JK03, JK04, JK1C, JK1G, .. | 01.06- | 127 | 173 | 1995 |
| RENAULT GRAND SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | 09.05-11.08 | 110 | 150 | 1995 |
| RENAULT GRAND SCÉNIC III (JZ0/1_) 2.0 dCi (JZ0Y) | 02.09- | 110 | 150 | 1995 |
| RENAULT LAGUNA Coupe (DT0/1) 2.0 16V Turbo | 09.08-12.15 | 125 | 170 | 1998 |
| RENAULT LAGUNA Coupe (DT0/1) 2.0 dCi (DT01, DT08, DT09, DT0K.. | 09.08-12.15 | 110 | 150 | 1995 |
| RENAULT LAGUNA Coupe (DT0/1) 2.0 dCi (DT0M, DT0N, DT0S, DT19.. | 09.08-12.15 | 127 | 173 | 1995 |
| RENAULT LAGUNA Coupe (DT0/1) 3.0 dCi | 01.12-12.15 | 177 | 241 | 2998 |
| RENAULT LAGUNA Coupe (DT0/1) 3.0 dCi (DT03) | 09.08-12.15 | 173 | 235 | 2998 |
| RENAULT LAGUNA Coupe (DT0/1) 3.5 V6 (DT0P) | 09.08-12.15 | 175 | 238 | 3498 |
| RENAULT LAGUNA III (BT0/1) 2.0 16V Turbo | 10.07-12.15 | 125 | 170 | 1998 |
| RENAULT LAGUNA III (BT0/1) 2.0 dCi (BT01, BT08, BT09, BT0E, .. | 10.07-12.15 | 110 | 150 | 1995 |
| RENAULT LAGUNA III (BT0/1) 2.0 dCi (BT0M, BT0N, BT0S, BT19, .. | 01.08-12.15 | 127 | 173 | 1995 |
| RENAULT LAGUNA III (BT0/1) 3.0 dCi (BT03, BT13) | 09.08-12.15 | 173 | 235 | 2998 |
| RENAULT LAGUNA III (BT0/1) 3.5 V6 (BT0C, BT0P) | 04.08-12.15 | 175 | 238 | 3498 |
| RENAULT LAGUNA III Grandtour (KT0/1) 2.0 16V Turbo | 10.07-12.15 | 125 | 170 | 1998 |
| RENAULT LAGUNA III Grandtour (KT0/1) 2.0 dCi (KT01, KT08, KT.. | 10.07-12.15 | 110 | 150 | 1995 |
| RENAULT LAGUNA III Grandtour (KT0/1) 2.0 dCi (KT0M, KT0N, KT.. | 01.08-12.15 | 127 | 173 | 1995 |
| RENAULT LAGUNA III Grandtour (KT0/1) 3.0 dCi (KT03, KT13) | 09.08-12.15 | 173 | 235 | 2998 |
| RENAULT LAGUNA III Grandtour (KT0/1) 3.5 V6 (KT0C, KT0P) | 04.08-12.15 | 175 | 238 | 3498 |
| RENAULT LATITUDE (L70_) 2.0 dCi 175 (L70Y) | 05.11- | 127 | 173 | 1995 |
| RENAULT LATITUDE (L70_) 2.5 V6 (L702, L703, L704, L707) | 05.11- | 130 | 177 | 2495 |
| RENAULT LATITUDE (L70_) 3.0 dCi 240 (L70G) | 02.11- | 177 | 241 | 2998 |
| RENAULT MEGANE III Coupe (DZ0/1_) 2.0 dCi (DZ0Y) | 04.09- | 110 | 150 | 1995 |
| RENAULT MEGANE III Grandtour (KZ0/1) 2.0 dCi (KZ0Y) | 10.10- | 110 | 150 | 1995 |
| RENAULT MEGANE III Hatchback (BZ0/1_, B3_) 2.0 dCi (BZ0Y) | 10.10- | 110 | 150 | 1995 |
| RENAULT SCÉNIC II (JM0/1_) 2.0 dCi (JM1K) | 09.05-11.08 | 110 | 150 | 1995 |
| RENAULT SCÉNIC III (JZ0/1_) 2.0 dCi (JZ0Y, JZ26) | 02.09- | 110 | 150 | 1995 |
May fits for other, not listed, Vehicles-Models
