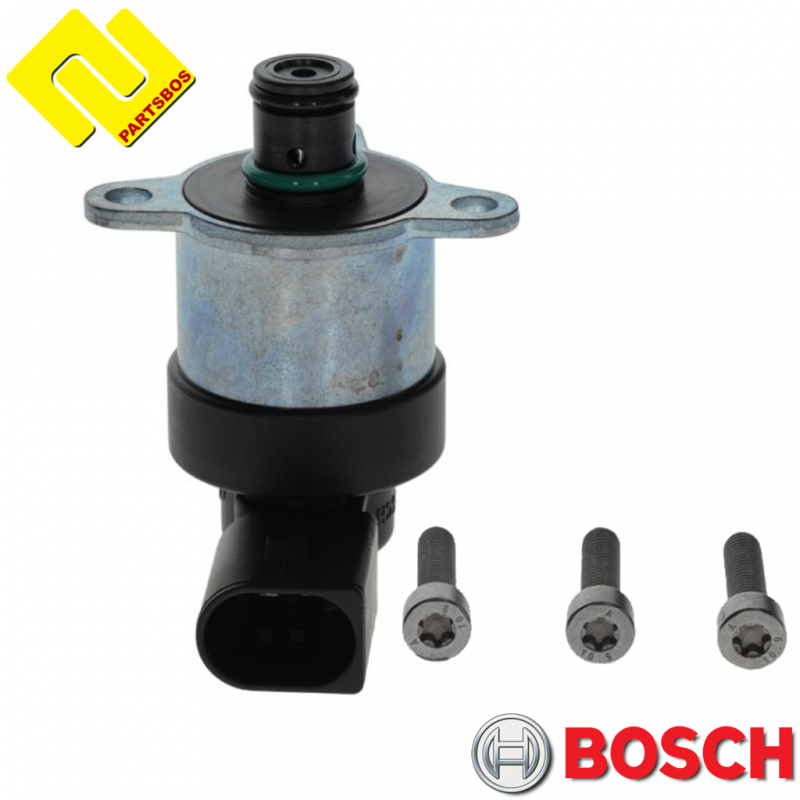

Common Rail Fuel Pressure Regulator/Control Valve kit.
Parts kit, Metering unit for CR pump ,
Fitting Position: High Pressure Pump (low pressure side).
INFO:
The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains
a fuel pressure of about 100 Bar. When the valve is activated,
the force of the electromagnet aids the spring, reducing the opening of the valve
and so increasing fuel pressure. The fuel pressure control valve also acts as
a mechanical pressure damper, smoothing the high frequency pressure pulses
emanating from the radial piston pump when less than three pistons are activated.
This part is called by many names including:
- MPROP
- FCA
- Injection Pressure Regulator
- Fuel Pressure Regulator
- Fuel Control Actuator
- Measuring Unit
- Fuel Measurement Solenoid Valve .
The kit includes:
- Metering unit 0928400512-1pc
- Ring 1928300718 -1pc
- O-ring 1928300719 -1pc
- Bolt F00N202192 -3pcs
Analogous, Fully interchangeable with BOSCH 1465ZS0123 :
BOSCH
0928400512 ,0 928 400 512 ,
0986437349 ,0 986 437 349 ,
0986437316 ,0 986 437 316 ,
AUDI
057130755D ,057130755E ,057 130 755 D ,057 130 755 E ,
VW (VOLKSWAGEN)
057130851DX ,057 130 851 DX ,
Fuel Pressure Regulator 0928400512 can be used on fuel pumps:
| BOSCH |
0445010036 ,0986437316 , |
| AUDI |
057130755D ,057130755E ,057130851DX , |
!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!
The best way to buy this part is to get the number from your existing unit.
You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
Please make sure your existing part number matches one of the numbers listed above.
If the number/s do not match, then the part will not work with your vehicle.
If you need more information please do not hesitate to contact us .
ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !
BOSCH 1 465 ZS0 123 ,
- Fuel pressure control valve ,CR System ,
- Fuel pressure Regulator,
- BOSCH Druckregelventil, Common-Rail-System ,Kraftstoffmessmagnetventil ,
- BOSCH ZAWOR DOZUJACY CR ,
- BOSCH Regulator ciśnienia - CR system ,
- BOSCH Nyomásszabályozó szelep, common rail rendszer ,
- BOSCH Spiediena regulators Bosch Common-Rail-Systēmai ,
- BOSCH Regulador de presión - CR Systema ,
- BOSCH Regulador de pressão - CR Sistema ,
- BOSCH Регулатор на налягането - CR System ,
- BOSCH Regulator tlaka - CR ,
- BOSCH Regulátor tlaku - CR System ,Måle drivstoff magnetventil ,
- BOSCH Regulator tlaka - CR sistem ,
- BOSCH Paineensäädin - CR System ,
- BOSCH Regolatore di pressione - CR System ,
- BOSCH Valvola regolapressione - Sistema Common-Rail ,
- BOSCH Regulator de presiune - CR System ,
- BOSCH Tryckregulator - CR System ,Trykreguleringsventil,
- BOSCH Þrýstingur eftirlitsstofnanna - CR System ,
- BOSCH Ρυθμιστής πίεσης - CR System
- BOSCH Дозировочный блок , Редукционный клапан ,
- BOSCH Регулятор давления подачи топлива CR ,
- BOSCH Дозувальний блок CR ,
- Trykkreguleringsventil ,
- Tryckreglerventil,
- Paineensäätöventtiili, Common-Rail-järjestelmä ,
- Détendeur, système de rampe commune ,
- Drukregelklep,
- Válvula control presión, Common Rail System ,
- Valvola regolapressione, Sistema Common-Rail ,
