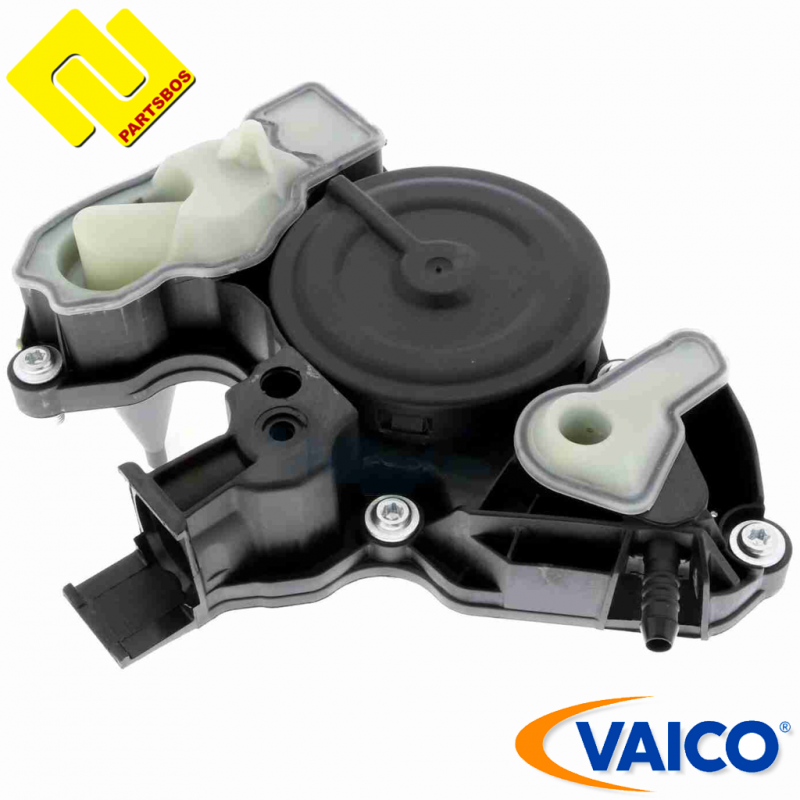

VAICO V10-3697 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-
  • VAICO V10-3697 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-
  • VAICO V10-3697 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-
  • VAICO V10-3697 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-
  • VAICO V10-3697 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-

VAICO V10-3697

(0)Review
€ 56.50
Tax included

Engine Breather

06K103495BM ,06K103495AA ,06K103495AG ,06K103495AT ,06K103495P ,

for AUDI ,SEAT ,SKODA ,VW ,

Original VAICO product

25 items

Volume discounts

QuantityPriceYou Save
3€ 56.50Up to € 8.48
Quantity
Add to wishlist
AVAILABLE
  • Reference OE/OEM Number: 06K103495BM ,06K103495AA ,06K103495AG ,06K103495AT ,06K103495P
  • Superseded Part Number: V10-5804 ,
  • Fits for Vehicles: AUDI ,SEAT ,SKODA ,VW ,


Security policy



Delivery policy



Return policy

VAICO V10-3697

Oil Separator (Crankcase Ventilation)

Technical Data

Part Type: Oil Separator, crankcase ventilation / Breather Valve
Operating Mode: Pressure Controlled
Fitting Position: Cylinder Head Cover, Upper
Material (Housing / Seals): Polyamid 6.6 / FPM (fluoride rubber), ACM (polyacrylate rubber)
Recommended Change Interval: 3 Years / 60000 km
Utility / Component Number: 1029935
Manufacturer: VAICO

Product Information

The Crankcase Ventilation Oil Separator (Breather Valve) is a fundamental component for modern engine efficiency and emissions control. It effectively separates oil droplets from crankcase blow-by gases, allowing the cleaned gases to be recirculated into the intake manifold while returning the oil to the sump. This premium "Original VAICO Quality" unit operates as a pressure-controlled valve, ensuring the crankcase remains under optimal vacuum . Constructed with a highly durable Polyamid 6.6 housing and premium FPM/ACM rubber seals, it is engineered to withstand extreme engine temperatures and chemical exposure . Designed for upper cylinder head cover mounting, it is a direct replacement for various VAG (Audi, SEAT, Skoda, VW) applications .

  • ✔ High-grade Original VAICO Quality manufacturing ensures reliable crankcase pressure regulation and extends engine life .
  • ✔ Recommended maintenance interval of 3 Years or 60,000 km ensures continuous optimal performance and prevents seal degradation .
  • ✔ Exact OE fitment for part numbers including 06K103495AA, 06K103495BM, and 06K103495P .
Symptoms of a faulty PCV / Oil Separator:
  • Rough, surging, or erratic idle speeds caused by an internal vacuum leak.
  • Significant increase in engine oil consumption and blue smoke from the exhaust.
  • A loud whistling or howling noise coming from the engine bay due to a ruptured internal diaphragm.
  • Check Engine Light (CEL) illuminated with lean mixture or misfire diagnostic codes.

Cross Reference

Fully interchangeable with OEM/OE parts:

OE Part Number: AUDI 06K103495AA ,06K103495AG ,06K103495AT ,06K103495P ,
SEAT 06K103495AA ,06K103495AG ,06K103495AT ,06K103495BM ,06K103495P ,6K103495AA ,6K103495AG ,6K103495AT ,
SKODA 06K103495AA ,06K103495AG ,06K103495AT ,06K103495BM ,06K103495P ,6K103495AA ,6K103495AG ,6K103495AT ,
VAG 06K103495AA ,06K103495AG ,06K103495AT ,06K103495BM ,06K103495P ,6K103495AA ,6K103495AG ,
VW 06K103495AA ,06K103495AG ,06K103495AT ,06K103495BM ,06K103495P ,
Manufacturer Ref: VAICO V103697 ,1029935 ,V10-5804 ,V105804 ,
Alternate OEM Ref: FEBI BILSTEIN 176539 ,176540 ,
HENGST FILTER AS371M05 ,
HOFFER 8091674 ,
PIERBURG 7.13498.12.0 ,7.13498.12 ,713498120 ,
NRF 20220017 ,
TOPRAN 117361 ,118195 ,
TRUCKTEC AUTOMOTIVE 07.10.124 ,

⚠ Diagnostic & Installation Tip ⚠

Before replacing the oil separator:

  • Check the corrugated plastic breather hoses connecting to the separator. These become extremely brittle over time and often crack during removal. It is highly recommended to replace the hoses simultaneously.
  • Ensure the mating surface on the upper cylinder head cover is completely clean and oil-free before installing the new unit to guarantee a perfect seal .
  • Observe the manufacturer's specified service intervals. Replacing the unit every 3 years or 60,000 km helps maintain proper FPM/ACM seal integrity and prevents engine oil leaks caused by excessive crankcase pressure .

If you need more information, please do not hesitate to contact us:

CONTACT US

Common translations for this part:

Oil Separator / PCV Valve / Crankcase Breather ,
Ölabscheider / Kurbelgehäuseentlüftung ,
Séparateur d'huile / Reniflard de carter ,
Separador de aceite / Ventilación del cárter ,
Olio-bereizgailua / Karterraren aireztapena ,
Separador d'oli / Ventilació del càrter ,
Separatore d'olio / Valvola PCV ,
Separatore d'oliu ,
Deighilteoir ola ,
Dealaiche ola ,
Gwahanydd olew ,
Separador de aceite ,
Separador de óleo / Ventilação do cárter ,
Olieafscheider / Carterventilatieklep ,
Olieudskiller / Krumtaphusventilation ,
Oalje skieding ,
Olíuskilja ,
Separatur taż-żejt ,
Ueleg separator ,
Oljeutskiller / Veivhusventilasjon ,
Oljeavskiljare / Vevhusventilation ,
Öljynerotin / Huohotinventtiili ,
Õliseparaator / Karterituulutuse klapp ,
Eļļas atdalītājs / Kartera ventilācija ,
Alyvos separatorius / Karterio ventiliacija ,
Separator oleju / Odma skrzyni korbowej ,
Odlučovač oleje / Odvětrávání klikové skříně ,
Ločevalnik olja / Prezračevanje ohišja ročične gredi ,
Odlučovač oleja / Odvetranie kľukovej skrine ,
Separator ulja / Odzračivanje bloka motora ,
Сепаратор за масло ,
Separator ulja / PCV ventil ,
Масловіддільник / Вентиляція картера ,
Ndarës vaji ,
Маслоотделитель / Клапан ВКГ ,
Маслааддзяляльнік ,
Сепаратор уља / ПЦВ вентил ,
Olajleválasztó / Kartergáz szellőztető ,
Διαχωριστής λαδιού / Βαλβίδα αναθυμιάσεων ,
Յուղի անջատիչ ,
Yağ ayırıcı ,
ზეთის სეპარატორი ,
Май бөлгіш ,
Yağ ayırıcı / Karter havalandırma valfi ,
Pemisah minyak ,
Separatè lwil oliv ,
Pemisah oli / Katup PCV ,
מפריד שמן / שסתום PCV ,
فاصل الزيت / بلف تبخير الزيت ,
جداکننده روغن / شیر PCV ,
ऑयल सेपरेटर / पीसीवी वाल्व ,
ऑइल सेपरेटर ,
เครื่องแยกน้ำมัน / วาล์ว PCV ,
オイルセパレーター / PCVバルブ ,
오일 세퍼레이터 / PCV 밸브 ,
油氣分離器 / 廢氣閥 ,
油气分离器 / 废气阀 ,
Bộ tách dầu / Van thông gió hộp trục khuỷu .

Thank you for visiting! Please bookmark us and come again.

PARTSBOS.SHOP
VAICO
P05019-VAI
25 Items

Data sheet

Manufacturer Part Number
V10-3697
Reference OE/OEM Number
06K103495BM ,06K103495AA ,06K103495AG ,06K103495AT ,06K103495P
Superseded Part Number
V10-5804 ,
Other Part Number
176540 ,AS371M05 ,8091674 ,20220017 ,117361 ,7.13498.12.0 ,
Fits for Vehicles
AUDI ,SEAT ,SKODA ,VW ,
Items Included
Gasket/Seal
Unit Type
Unit
Warranty Period
1 Year
Country/Region of Manufacture
Germany
Customs Code (HS)
84219990
UPIN
V10-3697

Specific References

THIS ITEM IS SUITABLE FOR VEHICLES :

Car Manufactured KW HP cc3
AUDI A3 (8V1, 8VK) S3 quattro 02.13-07.14 206 280 1984
AUDI A3 (8V1, 8VK) S3 quattro 05.14-08.16 210 286 1984
AUDI A3 (8V1, 8VK) S3 quattro 11.12-08.16 221 300 1984
AUDI A3 (8V1, 8VK) S3 quattro 06.16-12.17 228 310 1984
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 05.14-10.20 125 170 1798
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 05.14-10.20 162 220 1984
AUDI A3 Convertible (8V7, 8VE) S3 quattro 04.14-10.20 221 300 1984
AUDI A3 Convertible (8V7, 8VE) S3 quattro 07.16-10.20 228 310 1984
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 11.13-10.20 125 170 1798
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 11.15-10.20 162 220 1984
AUDI A3 Limousine (8VS, 8VM) S3 quattro 05.14-08.16 210 286 1984
AUDI A3 Limousine (8VS, 8VM) S3 quattro 05.14-10.20 215 292 1984
AUDI A3 Limousine (8VS, 8VM) S3 quattro 10.13-10.20 221 300 1984
AUDI A3 Limousine (8VS, 8VM) S3 quattro 10.13-05.14 206 280 1984
AUDI A3 Limousine (8VS, 8VM) S3 quattro 06.16-10.20 228 310 1984
AUDI A3 Sportback (8VA, 8VF) S3 quattro 06.16-10.20 228 310 1984
AUDI A3 Sportback (8VA, 8VF) S3 quattro 11.12-10.20 221 300 1984
AUDI A3 Sportback (8VA, 8VF) S3 quattro 05.14-08.16 210 286 1984
AUDI A3 Sportback (8VA, 8VF) S3 quattro 05.13-08.16 206 280 1984
AUDI Q3 (8UB, 8UG) 2.0 TFSI 05.15-10.18 132 180 1984
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 11.14-10.18 132 180 1984
AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro 11.14-10.18 162 220 1984
AUDI TT (FV3, FVP) 1.8 TFSI 07.15-08.18 132 180 1798
AUDI TT (FV3, FVP) 2.0 TFSI 07.14- 169 230 1984
AUDI TT (FV3, FVP) 2.0 TFSI quattro 07.14- 169 230 1984
AUDI TT (FV3, FVP) 2.0 TTS quattro 11.14- 228 310 1984
AUDI TT (FV3, FVP) 2.0 TTS TFSI quattro 02.15- 210 286 1984
AUDI TT Roadster (FV9, FVR) 1.8 TFSI 07.15-08.18 132 180 1798
AUDI TT Roadster (FV9, FVR) 2.0 TFSI 11.14- 169 230 1984
AUDI TT Roadster (FV9, FVR) 2.0 TFSI quattro 11.14- 169 230 1984
AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro 11.14- 228 310 1984
AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro 02.15- 210 286 1984
SEAT LEON (5F1) 2.0 Cupra 10.13-08.20 206 280 1984
SEAT LEON (5F1) 2.0 Cupra 01.17-08.18 221 300 1984
SEAT LEON (5F1) 2.0 Cupra 10.15-08.20 213 290 1984
SEAT LEON (5F1) 2.0 Cupra 10.13-08.20 195 265 1984
SEAT LEON (5F1) 2.0 Cupra R 11.17-08.18 228 310 1984
SEAT LEON SC (5F5) 2.0 Cupra 01.17-08.18 221 300 1984
SEAT LEON SC (5F5) 2.0 Cupra 10.15-11.16 213 290 1984
SEAT LEON SC (5F5) 2.0 Cupra 10.13-11.16 195 265 1984
SEAT LEON SC (5F5) 2.0 Cupra 10.13-11.16 206 280 1984
SEAT LEON ST (5F8) 2.0 Cupra 10.13-08.20 206 280 1984
SEAT LEON ST (5F8) 2.0 Cupra 11.16-08.18 221 300 1984
SEAT LEON ST (5F8) 2.0 Cupra 10.15-08.20 213 290 1984
SEAT LEON ST (5F8) 2.0 Cupra 10.13-08.20 195 265 1984
SEAT LEON ST (5F8) 2.0 Cupra 4Drive 11.16-08.20 221 300 1984
SEAT LEON ST Estate Van (5F8) 2.0 Cupra 11.16-08.18 221 300 1984
SEAT LEON ST Estate Van (5F8) 2.0 Cupra 4Drive 11.16-08.18 221 300 1984
SKODA OCTAVIA III (5E3, NL3, NR3) 1.8 TSI 11.12-10.20 132 180 1798
SKODA OCTAVIA III (5E3, NL3, NR3) 1.8 TSI 4x4 05.14-10.20 132 180 1798
SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS 05.13-02.17 162 220 1984
SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS 05.15-10.20 169 230 1984
SKODA OCTAVIA III Combi (5E5, 5E6) 1.8 TSI 11.12-10.20 132 180 1798
SKODA OCTAVIA III Combi (5E5, 5E6) 1.8 TSI 4x4 11.12-02.17 132 180 1798
SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS 05.15-10.20 169 230 1984
SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS 11.12-02.17 162 220 1984
SKODA SUPERB III (3V3) 2.0 TSI 03.15-06.24 162 220 1984
SKODA SUPERB III (3V3) 2.0 TSI 4x4 03.15-06.24 200 272 1984
SKODA SUPERB III (3V3) 2.0 TSI 4x4 03.15-06.24 206 280 1984
SKODA SUPERB III Estate (3V5) 2.0 TSI 03.15-06.24 162 220 1984
SKODA SUPERB III Estate (3V5) 2.0 TSI 4x4 03.15-06.24 206 280 1984
SKODA SUPERB III Estate (3V5) 2.0 TSI 4x4 03.15-06.24 200 272 1984
VW ARTEON (3H7, 3H8) 2.0 TSI 4motion 04.18- 200 272 1984
VW ARTEON (3H7, 3H8) 2.0 TSI 4motion 04.17- 206 280 1984
VW BEETLE (5C1, 5C2) 2.0 TSI 12.14-09.18 162 220 1984
VW BEETLE Convertible (5C7, 5C8) 2.0 TSI 12.14-09.18 162 220 1984
VW GOLF VI Convertible (517) 2.0 TSI 11.13-05.16 162 220 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 11.13-07.17 155 210 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 04.13-08.20 169 230 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 04.13-08.20 162 220 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI 03.17-08.20 180 245 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Clubsport 02.16-03.17 195 265 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Clubsport S 09.16-03.17 228 310 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 11.13-03.17 206 280 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 12.16-08.20 228 310 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 11.13-08.20 221 300 1984
VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion 12.16-08.20 213 290 1984
VW GOLF VII Van (5G1) 2.0 GTi 04.15-03.17 169 230 1984
VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion 12.16-08.20 228 310 1984
VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion 03.15-03.17 206 280 1984
VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion 12.16-08.20 213 290 1984
VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion 03.15-08.20 221 300 1984
VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion 07.15-03.24 162 220 1984
VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion 08.18-11.20 200 272 1984
VW PASSAT B8 (3G2, CB2) 2.0 TSI 02.15-03.24 162 220 1984
VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion 05.15-03.24 206 280 1984
VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion 09.18-11.20 200 272 1984
VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 08.14-03.24 162 220 1984
VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion 05.15-03.24 206 280 1984
VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion 09.18-11.20 200 272 1984
VW SCIROCCO III (137, 138) 2.0 TSI 11.13-11.17 132 180 1984
VW SCIROCCO III (137, 138) 2.0 TSI 11.13-11.17 162 220 1984
VW TIGUAN (AD1, AX1) 2.0 TSI 4motion 06.16-04.24 162 220 1984

​May fits for other, not listed, Vehicles-Models

PARTSBOS.SHOP

No customer reviews for the moment.

Write your review

VAICO V10-3697

Engine Breather

06K103495BM ,06K103495AA ,06K103495AG ,06K103495AT ,06K103495P ,

for AUDI ,SEAT ,SKODA ,VW ,

Original VAICO product

Write your review

7 other products in the same category:

FEBI 46604 Engine Breather with gasket for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-FEBI 46604
  • New
    Quick View
    Add to Compare Product
    Add to wishlist
    Engine Breathers
    FEBI 46604
    (0)Review
    € 52.80Price
    • Reference OE/OEM Number: 06F129101F ,06F129101L ,06F129101N ,06F129101R ,06F129101RS1 ,
    • Superseded Part Number: 46518 ,44481 ,107189 ,
    • Fits for Vehicles: for AUDI ,SEAT ,SKODA ,VW ,
    FEBI 100133 Engine Breather for BMW , -PARTSBOS-FEBI 100133
    • New
      Quick View
      Add to Compare Product
      Add to wishlist
      Engine Breathers
      FEBI 100133
      (0)Review
      € 39.40Price
      • Reference OE/OEM Number: 11127803790 ,11127809512 ,7803790 ,7809512
      • Fits for Vehicles: BMW
      VAICO V10-2597 Engine Breather for AUDI ,SEAT ,SKODA ,VW , -PARTSBOS-VAICO V10-2597
      • New
        Quick View
        Add to Compare Product
        Add to wishlist
        Engine Breathers
        VAICO V10-2597
        (0)Review
        € 48.20Price
        • Reference OE/OEM Number: 059103495G ,059 103 495G ,059 103 495 G ,
        • Superseded Part Number: V102597
        • Fits for Vehicles: AUDI ,SEAT ,SKODA ,VW
        VAICO V30-2525 Engine Breather Kit for Mercedes-Benz , -PARTSBOS-VAICO V30-2525
        • New
          Quick View
          Add to Compare Product
          Add to wishlist
          Engine Breathers
          VAICO V30-2525
          (0)Review
          € 66.90Price
          • Reference OE/OEM Number: 2720100431 ,A0009986590 ,A0009977820 ,A2720100631 ,
          • Superseded Part Number: V30-4124 ,1078914 ,1018911 ,
          • Fits for Vehicles: MERCEDES-BENZ
          VAICO V10-2596 Breather Valve 05A103495 , Crankcase Oil Separator for VAG ,-PARTSBOS-VAICO V10-2596
          • New
            Quick View
            Add to Compare Product
            Add to wishlist
            Engine Breathers
            VAICO V10-2596
            (0)Review
            € 50.90Price
            • Reference OE/OEM Number: 05A103495 ,5A103495
            • Superseded Part Number: 1060599 ,V102596 ,
            • Fits for Vehicles: AUDI ,VW ,
            FEBI 176316 Engine Breather for AUDI ,CUPRA ,SEAT ,SKODA ,VW , -PARTSBOS-FEBI 176316
            • New
              Quick View
              Add to Compare Product
              Add to wishlist
              Engine Breathers
              FEBI 176316
              (0)Review
              € 62.70Price
              • Reference OE/OEM Number: 06K103495BL ,06K103495T ,06K103495R ,06K103495J ,06K103495C ,
              • Fits for Vehicles: AUDI ,CUPRA ,SEAT ,SKODA ,VW ,
              VAICO V30-2620 Engine Breather for MERCEDES-BENZ , -PARTSBOS-VAICO V30-2620
              • New
                Quick View
                Add to Compare Product
                Add to wishlist
                Engine Breathers
                VAICO V30-2620
                (0)Review
                € 35.20Price
                • Reference OE/OEM Number: A6420102091 ,A6420100591 ,A6420100391 ,A6420100191 ,
                • Superseded Part Number: V30-3553 ,
                • Fits for Vehicles: MERCEDES-BENZ
