Parameters:

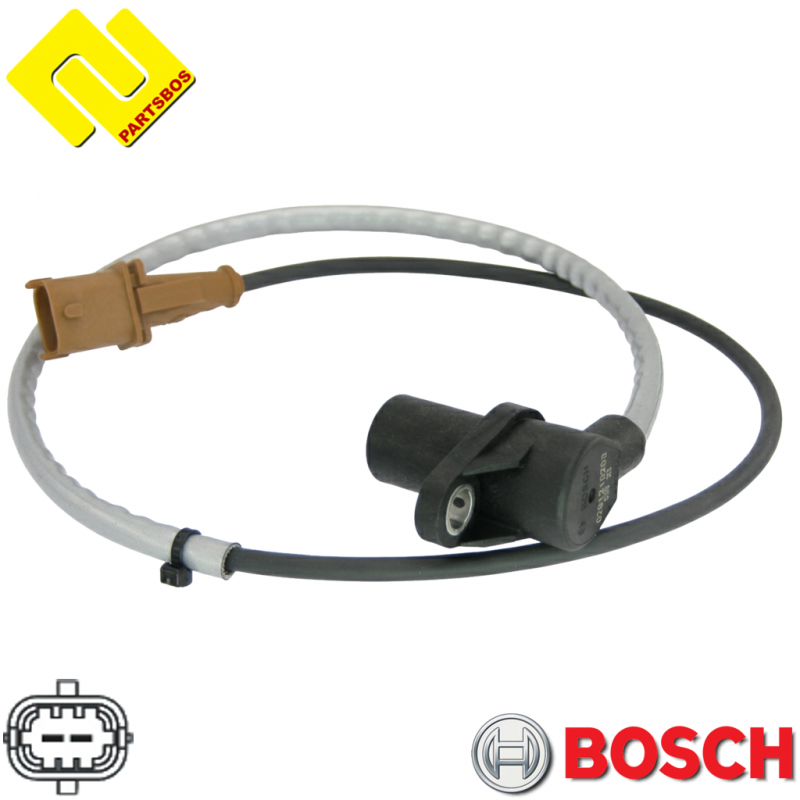

The crankshaft sensor measures the rotational speed of the motor. It consists of a permanent magnet and an induction coil with a soft-iron core.
A gear rim is fitted to the fly wheel as a pulse transmitter. There is only a small air gap between the inductive transmitter and the gear rim.
The magnetic flow through the coil depends on whether there is a gap or a gear tooth opposite the sensor.
A gear tooth will focus the magnet‘s leakage flux while a gap reduces the magnetic flux.
As the fly wheel and thus the gear rim rotates, each individual gear tooth causes a change in the magnetic field.
These changes in the magnetic field create induction voltage inside the coil.
The rotational speed of the fly wheel can be measured by the number of impulses per time unit.
Deliberate gaps in the gear rim enable the control unit to detect the current position of the motor as well.
The motor‘s rotational speed is the main control factor for determining the mixture and for ignition advance.
| ALFA ROMEO | 46808734 ,60662826 ,60816746 , |
| FIAT | 0060662826 ,0060816746 ,46808734 ,60662826 ,60816746 , |
| LANCIA | 46808734 ,60662826 ,60816746 , |
| EPS | 1.953.384 ,1953384 , |
| FACET | 9.0384 ,90384 , |
| FISPA | 83.188 , |
| HOFFER | 7517335 , |
| KW | 453384 , |
| LUCAS | SEB1015 , |
| MAGNETI MARELLI | 064848039010 ,SAG039 , |
| MEAT & DORIA | 87335 , |
| VALEO | 366814 , |
| VEMO | V24-72-0136 , |
If you need more information please do not hesitate to contact us .
Data sheet
Specific References
| Car | Manufactured | KW | HP | cc3 |
| ALFA ROMEO 147 (937_) 3.2 GTA (937.AXL1) | 02.03-03.10 | 184 | 250 | 3179 |
| ALFA ROMEO 156 (932_) 2.5 V6 24V (932A11_) | 10.00-09.05 | 141 | 192 | 2492 |
| ALFA ROMEO 156 (932_) 3.2 GTA (932AXB) | 03.02-09.05 | 184 | 250 | 3179 |
| ALFA ROMEO 156 Sportwagon (932_) 2.5 V6 24V (932B1100) | 02.97-05.06 | 141 | 192 | 2492 |
| ALFA ROMEO 156 Sportwagon (932_) 3.2 GTA (932.BXB00) | 03.02-05.06 | 184 | 250 | 3179 |
| ALFA ROMEO 166 (936_) 2.5 V6 24V (936A21__) | 10.00-06.07 | 138 | 188 | 2492 |
| ALFA ROMEO 166 (936_) 3.0 V6 24V (936A11__) | 10.00-06.07 | 162 | 220 | 2959 |
| ALFA ROMEO 166 (936_) 3.2 V6 24V (936AXB00, 936AXA00) | 10.03-06.07 | 176 | 240 | 3179 |
| ALFA ROMEO GT (937_) 3.2 GTA (937CXP1B) | 11.03-09.10 | 176 | 240 | 3179 |
| ALFA ROMEO GTV (916_) 3.0 V6 24V (916.C1B__) | 10.00-10.05 | 160 | 218 | 2959 |
| ALFA ROMEO GTV (916_) 3.2 V6 24V (916CXB00) | 04.03-10.05 | 176 | 240 | 3179 |
| ALFA ROMEO SPIDER (916_) 3.0 V6 (916S1B00) | 09.94-04.05 | 160 | 218 | 2959 |
| ALFA ROMEO SPIDER (916_) 3.0 V6 24V (916S1) | 01.99-10.03 | 162 | 220 | 2959 |
| ALFA ROMEO SPIDER (916_) 3.2 V6 24V (916SXB00) | 04.03-04.05 | 176 | 240 | 3179 |
| FIAT Coupe 2.0 20V Turbo | ||||
| FIAT Marea 2.0 20V | ||||
| FIAT Bravo/Brava 2.0 20V | ||||
| FIAT Croma 2.5 V6 / 3.0 V6 (V6 engines from Alfa lineage) | ||||
| LANCIA THESIS (841_) 3.0 V6 (841AXC1101) | 07.02-07.09 | 158 | 215 | 2959 |
| LANCIA THESIS (841_) 3.2 V6 (841.AXF110) | 05.03-07.09 | 169 | 230 | 3179 |
May fits for other, not listed, Vehicles-Models
