On sale!

BOSCH 0986280798

(0)Review

€ 47.40

Tax included

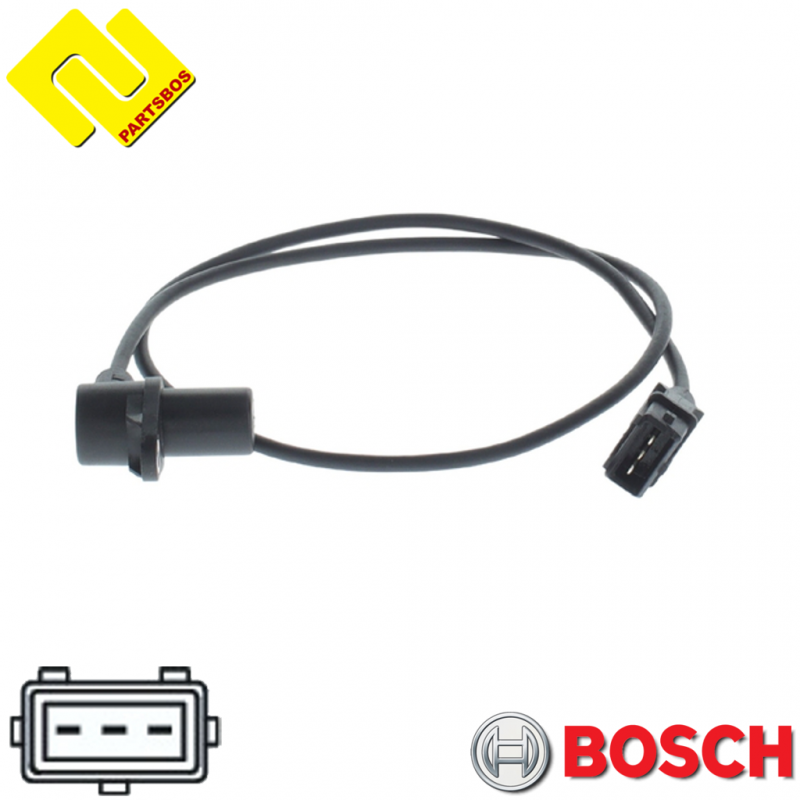

Crankshaft RPM Sensor ,

0261210036 ,60513208 ,60560715 ,5162472 ,4199334 ,0K2B118891 ,0261210057 ,0261210047 ,

for ALFA ROMEO ,BMW ,CASE IH ,FIAT ,KIA ,IVECO ,KHD ,

100% Original BOSCH Product

2 items

Volume discounts

Quantity	Price	You Save
3	€ 47.40	Up to € 7.11

Quantity

AVAILABLE

Shipping Calculator

Destination

Enter Destination to Estimate Shipping

Country*

State/Province*

Inlcude Cart Items

Yes No

please select the country first!

Product Features

Superseded Part Number: 0261210036 ,0261210047 ,0261210163 ,0261210113 ,0261210057
Fits for Vehicles: ALFA ROMEO ,CASE IH ,FIAT ,IVECO ,KIA ,KHD
Number of Connectors: 3
Type: Inductive Sensor
Length [MM]: 770

Security policy

Delivery policy

Return policy

Crankshaft Position Sensor .

Crankshaft RPM pulse sensor.

Parameters:

Terminals: 3
Cable: 770mm
Inductive Sensor
Flywheel side

INFO:

The crankshaft sensor measures the rotational speed of the motor. It consists of a permanent magnet and an induction coil with a soft-iron core.

A gear rim is fitted to the fly wheel as a pulse transmitter. There is only a small air gap between the inductive transmitter and the gear rim.

The magnetic flow through the coil depends on whether there is a gap or a gear tooth opposite the sensor.

A gear tooth will focus the magnet‘s leakage flux while a gap reduces the magnetic flux.

As the fly wheel and thus the gear rim rotates, each individual gear tooth causes a change in the magnetic field.

These changes in the magnetic field create induction voltage inside the coil.

The rotational speed of the fly wheel can be measured by the number of impulses per time unit.

Deliberate gaps in the gear rim enable the control unit to detect the current position of the motor as well.

The motor‘s rotational speed is the main control factor for determining the mixture and for ignition advance.

Analogous, Fully interchangeable with BOSCH 0986280798 :

ALFA ROMEO	195321101900 ,60513208 ,60560715 ,
BMW	12141721968 ,12 14 1 721 968 ,
CASE IH	5162472 ,
FIAT	0060513208 ,60513208 ,
IVECO	5162472 ,
KHD	04199334 ,4199334 ,
KIA	0K2B118891 ,0K2B1-18-891 ,0K2B318891 ,0K2B3-18-891 ,0K23B18891 ,0K23B-18-891 ,
ROLLS-ROYCE	UE72296 ,
BOSCH	0261210036 ,0 261 210 036 ,0261210047 ,0 261 210 047 ,0261210057 ,0 261 210 057 ,0261210163 ,0 261 210 163 ,0261210113 ,0 261 210 113 ,0 986 280 798 ,
HELLA	6PU358191-271 ,
ERA	550375 ,550280 ,
FACET	9.0132 ,9.0151 ,
FAE	79037 ,79451 ,
KW	453132 ,453151 ,
LUCAS	SEB256 ,SEB5123 ,
MEAT & DORIA	87112 ,
VALEO	366795 ,
VEMO	V24-72-0024 ,V24-72-0081 ,V24-72-0081-1 ,

!!! Please, check manufacturer's part number(usually stamped into plastic or body) before ordering !!!

The best way to buy this part is to get the number from your existing unit.
You can contact us with your car details (make, model, year, body type, hp, engine code if known) so we can find the part required.
Please make sure your existing part number matches one of the numbers listed above.
If the number/s do not match, then the part will not work with your vehicle.

If you need more information please do not hesitate to contact us .

ALL O.E.M. NAMES AND NUMBERS ARE USED FOR REFERENCE ONLY !
